AT07 - Tandem Axle Deck Over ATV 7,000 Lb w/4" Channel Frame

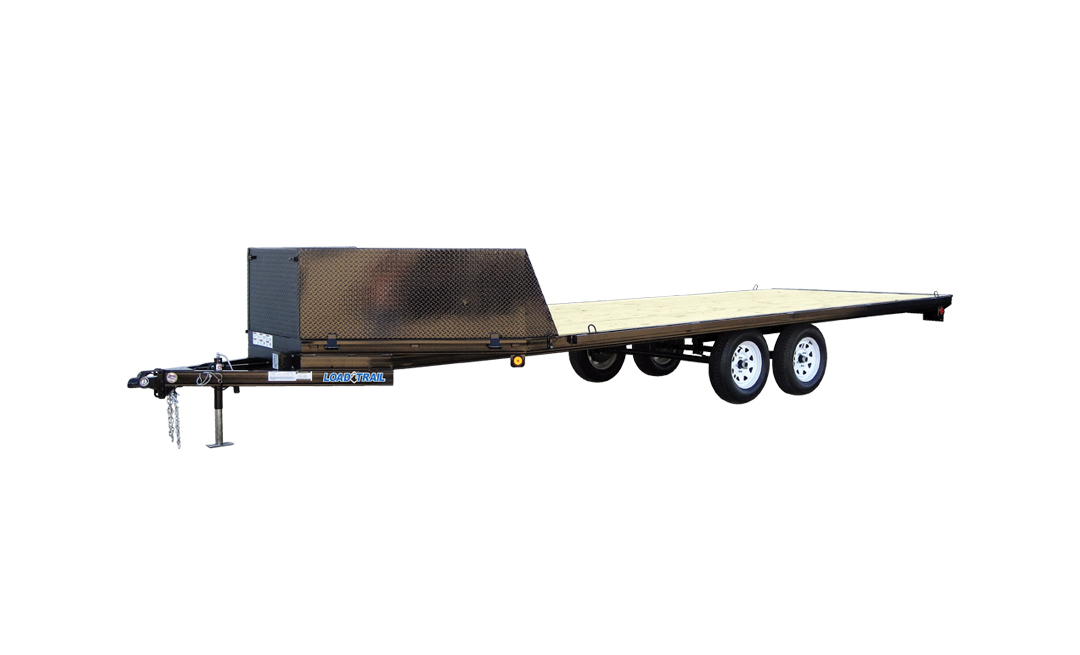

**AT07 stock photo. May be shown with optional equipment.
Click trailer image for a larger view.

Part Description Weight
TV9616032   96" X 16' Deck Over ATV Trailer   2238
TV9620032   96" X 20' Deck Over ATV Trailer   2764
TV9623032   96" X 23' Deck Over ATV Trailer   2801
Includes industry best warranty and (free) roadside assistance program. Read more...
Download Trailer Brochure

Load Trail User Reviews

See what others are saying about Load Trail Tandem Axle Utility and Tandem Axle Landscape: (or write a review today)

"I am a very discriminating consumer and deligently inspected and shopped all trailer brands in Central New Mexico. To my surprise I found a small trailer dealer in Bosque Farms that sold a brand that was unfamiliar to me. After a detailed inspection of the 83" x 14' tandem axle utility trailer I bought it on the spot. It was the highest quality and best designed trailer in my area. I liked the heavy duty C-channel construction, steel fenders, Dexter axles, swivel jack, smart wiring, cast iron hitch, and good paint job. As a bonus my dealer, ABC Trailer, was wonderful. He was knowledgable, freindly, and didn't try to push the sale. As I was writing the the check for the trailer I got a few more nice surprises; the 2-3-2 warranty, a hat (okay a hat is not that big of a deal, but I always wear a ball cap and was in need of a new cap), and manuals! I have owned two horse trailers, two boat trailers, and three utility trailers and never received any manuals. This trailer came with two manuals, one for the trailer and another one for the axles! I've only owned the trailer for a few weeks and have hauled hay, horse panels, and my tractor. I am very happy with my purchase, the dealer, and Load Trail."
--Michael S. of NM
Owner Since: 6/8/13

"First day having the trailer very impressed, the way it pulls is incredible smooth. Had to check the rearview just to see if it was still hooked to the truck. Very well built, nice finish and the ramps are well built and very ease to raise and lower. I looked at tons of trailer and they were either under built or too far out of my price range. Load Trailers offer the best of both worlds and then some. Thank you! Wilson"
--Wilson F. of MI
Owner Since: 3/26/13

"Bought this flat bed trailer from Trailer Barn Inc. back in 2006 and was greatly satisfied with the quality of Loadtrail Trailers I soon went Back and Bought A Heavy Duty Dump Trailer from Trailer Barn for my concrete buisness and after a few months passed i went back and Bought yet another Dump Trailer from Them ! I swear by The Load Trail brand, any Trailer i buy in the future or recommend to anyone is and allways will be LOAD TRAIL!!"
--Patrick M. of CALIFORNIA
Owner Since: 3/10/2006

...read all reviews on Load Trail Tandem Axle Utility and Tandem Axle Landscape

Standard Features
GVWR:7,000 lb Product Series:AT07
Couplers:2-5/16" Adjustable GAWR:3,500 Lb (ea axle)
Axles:2-3,500 Lb Cambered Dexter Spring 1 Elec. Brake Jack:5,000 Lb Top Wind Swivel Jack
Safety Chains:7,600 Lb 5/16 x 29 G#30 Tires:205/75 D15 LRC
Wheels:15" 5-Hole White Spoke Flooring:Treated Wood
Tongue & Neck:4" Channel (4.5 lbs/ft) Tool Box:
Suspension:Multi-Leaf Spring Fenders:
Crossmembers2" x 2" x 3/16 Angle Iron (2.44 lbs/ft) Frame:4" Channel (4.5 lbs/ft)
Lights:D.O.T. Stop, Tail, Turn and Clearance Ramps:5' Slide-In Ramps
Product LineTandem Axle Utility & Tandem Axle Landscape Wire Harness:16 Ga. 5-Way Double Insulated Harness w/7-way plug
Finishing Coat:DTM Polyurethane Coating System Finish (prep):Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
EWR ClassSINGLE AXLE UTILITY

Axle Options:
Code Axle
ES1  2 - 3,500 Lb Dexter Spring Axles (1 Elec Brake)
ES2  2 - 3,500 Lb Dexter Spring Axles (2 Elec Brakes)
HS2  2 - 3,500 Lb Dexter Spring Axles (2 Hyd Surge Brakes)


Click to see our Dexter Video Playlist
Color Options:
Code SAMPLE Color
CB2 Black
CG3 Grey
CW4 White
CR5 Red
CB6 Blue
CG7 Green
CY8 Yellow
CO9 Orange

Additional Options:
Tire Upgrades
A02ST205/75 R15 LRD 8 Ply. (standard)
A04 ST225/75 R15 LRD 8 Ply.
A01 ST205/75 D15 LRC 6 Ply.
A03 ST225/75 D15 LRD 8 Ply.
Couplers
C07Coupler 2-5/16" Adjustable 4 Hole (standard)
C03 Coupler 2" A-Frame Cast Hyd.
Floors
E02Treated Wood Floor (standard)
Ramps
H022 - Ramps 18" x 60" (standard)

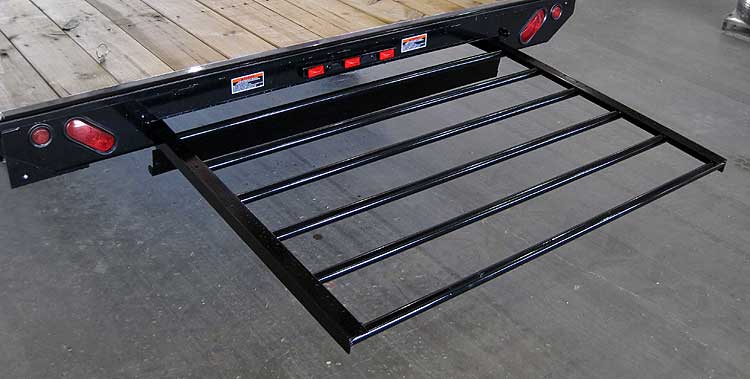

H20 Snow Mobile Slide In Ramps
D-Rings
M02D-Rings 3" Weld On (2 additional)
M03 D-Rings 3" Weld On (4 additional)
M04 D-Rings 4" Recessed 360 Rotational Bolt On (4 each )
M05 D-Rings 4" Recessed 360 Rotational Bolt On (6 each )
M06 D-Rings 4" Recessed 360 Rotational Bolt On (8 each )
Cross Members
I0116" Cross-Members
Jacks
J01Jack Swivel 5000 lb. (standard)
Lights
L01Lighting Regular (standard)
L03 Lighting LED (optional)
Tool Box
T01Front Tongue Mount Tool Box
Winch
W01Winch Plate
W10 15000lb. Winch PKG(Std Plate,Batt, Charger,Mounting Hdw)
Rear Support Jacks
RS1Rear Support Stands (2 - 5,000 Lb Swivel Jacks)
Rub Rails
RR1Rub Rail
Stone Guard

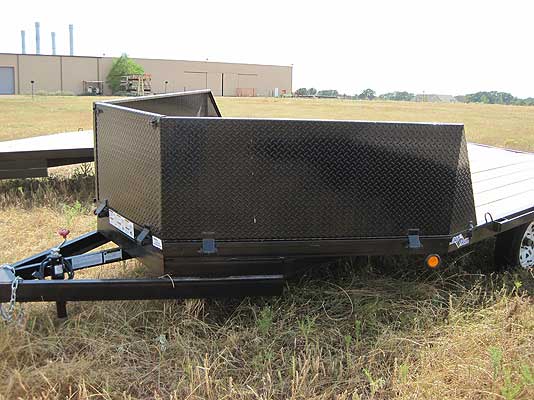

SG1Diamond Plate Front Stone Guard
Spare Tires
STCSpare Tire ST205/75 R15 LRD 8 Ply. 5-Hole White Spoke
STE Spare Tire ST225/75 R15 LRD 8 Ply. 5-Hole White Spoke
STB Spare Tire ST205/75 D15 LRC 6 Ply. 5-Hole White Spoke
STD Spare Tire ST225/75 D15 LRD 8 Ply. 5-Hole White Spoke
Stake Pockets
SP14 - Additional Stake Pockets
Spare Tire Mount (universal)
TM1Spare Tire Mount
Zinc Primer
ZP1 Zinc Primer
Road Service Program
RSPRoad Service Program 903-783-3933 for Info. (standard)



Prices, features, and specifications are subject to change without notice.
