DK14 - Pintle Hook Deck Over 14,000 Lb w/6" Channel Frame

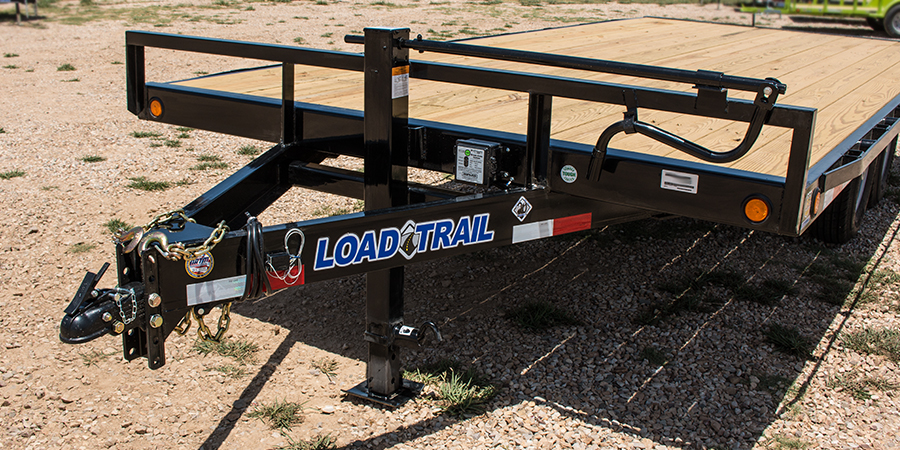

**DK14 stock photo. May be shown with optional equipment.
Click trailer image for a larger view.

Part Description Weight
DK0214072   102" X 14' Deck Over Pintle Hook
DK0216072   102" X 16' Deck Over Pintle Hook   3279
DK0218072   102" X 18' Deck Over Pintle Hook   3474
DK0220072   102" X 20' Deck Over Pintle Hook   3674
DK0222072   102" X 22' Deck Over Pintle Hook   3937
DK0224072   102" X 24' Deck Over Pintle Hook   4296
Includes industry best warranty and (free) roadside assistance program. Read more...
Download Trailer Brochure

Load Trail User Reviews

See what others are saying about Load Trail Standard Gooseneck and Pintle Hooks: (or write a review today)

"I have used load trail trailers a lot and have found they are the easiest trailer to pull. They always handle great loaded or empty. So when it came time for me to upgrade it was a no brainer on what to get."
--David P. of MO
Owner Since: 4-21-13

"We needed a deckover trailer to ship our manufactured goods. We had the trailer built to our specs by Load Trail. Being in the metal fabrication business we know what a well built product should look like. we are very pleased with it and the ontime delivery that we received. We would recomend Load Trail to any one looking for thier type of product. Viking Welding & Fabrication"
--Don J. of NH
Owner Since: 11/2013

"The low profile tadem axel gooseneck with hydraulic dove tail is the best trailer investment for me thus far. The price was right and at 30ft long, is the most deck for the money. Standard Factory specs with L.E.D. lighting, oil bath hubs and winch plate are usually all extra money making options for other dealers. Towes exceptional and deck is very impressive. Added 4 D-rings to increase tiedown at end of dove tail and added 12,000lb winch to it and that was it. Dove tail lock is a bit stiff, but I am sure it will break in with use. Spare tire came standard, would be nice if there was spare tire hold down rather than just sliding around in the neck tray. I would suggest to anyone as this trailer and well served it purpose and seems to be the most bang for you buck."
--Doug M. of IN
Owner Since: 2/10/13

...read all reviews on Load Trail Standard Gooseneck and Pintle Hooks

Standard Features
GVWR:14,000 lb Product Series:DK14
Couplers:2-5/16" Adjustable GAWR:7,000 Lb (ea axle)
Axles:2-7,000 Lb Cambered Dexter Spring 2 Elec. Brake Jack:1-10K Drop Leg Spring Return
Safety Chains:18,800 Lb 5/16 x 28 G#70 Tires:235/80 R16 LRE
Wheels:16" 8-Hole Sliver Mod Flooring:Treated Wood
Tongue & Neck:6" Channel (8.2 lbs/ft) Suspension:Multi-Leaf Slipper Spring
Crossmembers3" Channel (3.5 lbs/ft) Frame:6" Channel (8.2 lbs/ft)
Lights:D.O.T. Stop, Tail, Turn and Clearance Ramps:8' Slide-In Ramps
Product LineStandard Gooseneck & Pintle Hooks Wire Harness:16 Ga. 5-Way Double Insulated Harness w/7-way plug
Finishing Coat:Sherwin-Williams Powdura Polyester TGIC Gloss Powder Coating Finish (prep):Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
EWR ClassSTANDARD PINTLE

Axle Options:
Code Axle
ET2  2 - 7,000 Lb Dexter Torsion Axles (DOWN)(2 Elec Brakes)
ES2  2 - 7,000 Lb Dexter Spring Axles (2 Elec Brakes)
ESB  2 - 7,000 Lb Dexter Axles (2 Elec Brakes)Forward Adjusting


Click to see our Dexter Video Playlist
Color Options:
Code SAMPLE Color
CB2 Black
CR5 Red
CG7 Green
CG3 Grey
CW4 White
CY8 Yellow
CB6 Blue
CO9 Orange

Additional Options:
Tire Upgrades

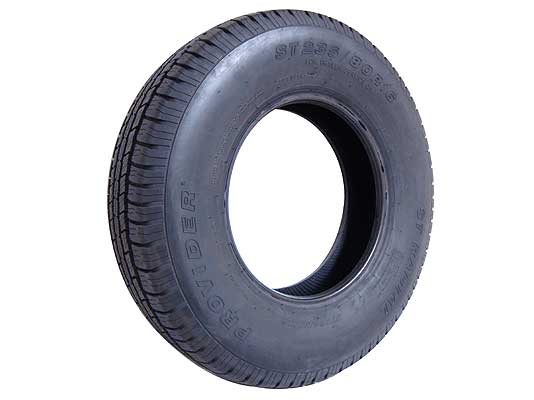

A05ST235/80 R16 LRE 10 Ply. (standard)

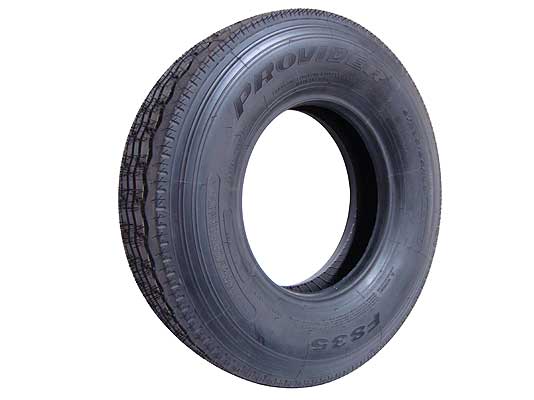

A06 ST235/85 R16 LRG 14 Ply.
Couplers

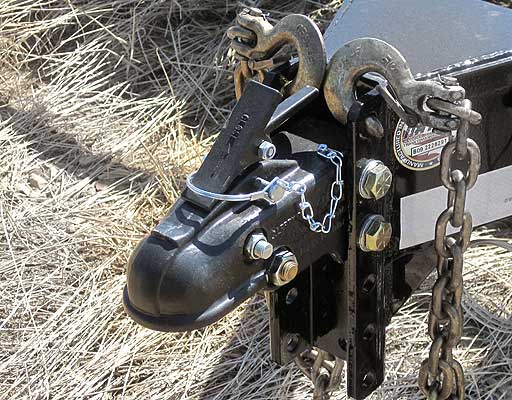

C10Coupler 2-5/16" Adjustable 6 Hole (standard)

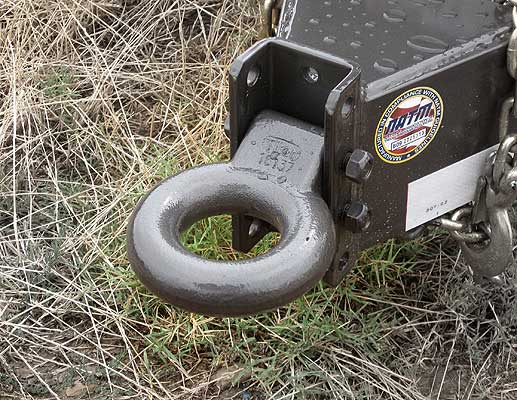

C11 Pintle Ring 3" Adjustable 6 Hole
Floors

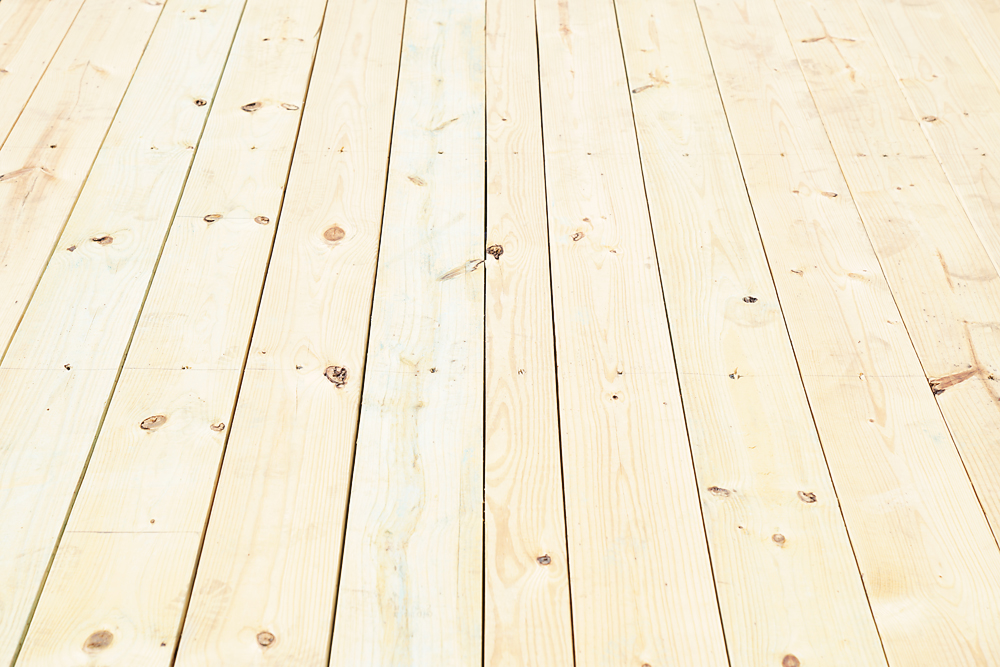

E02Treated Wood Floor (standard)

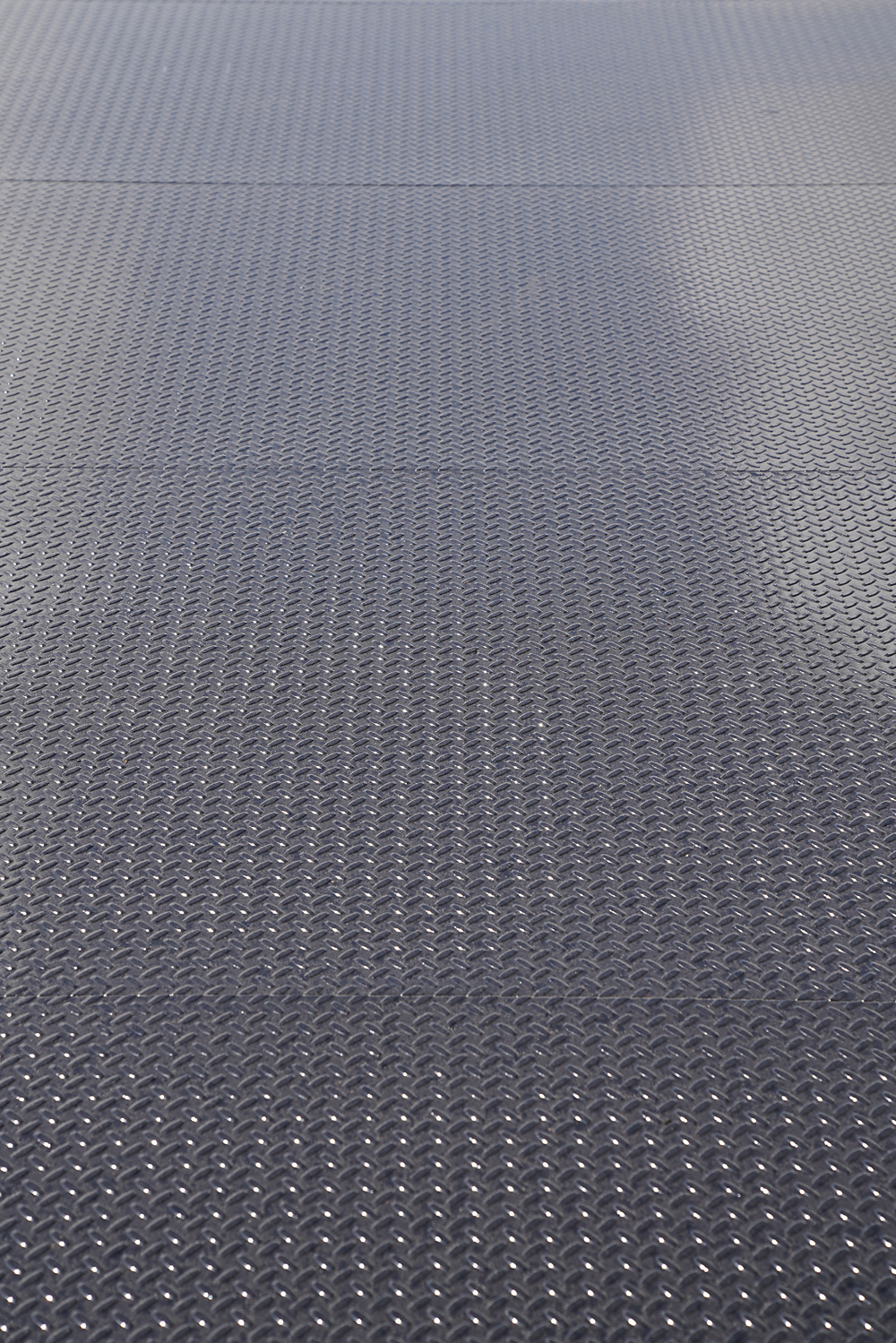

E03 Steel Floor DP

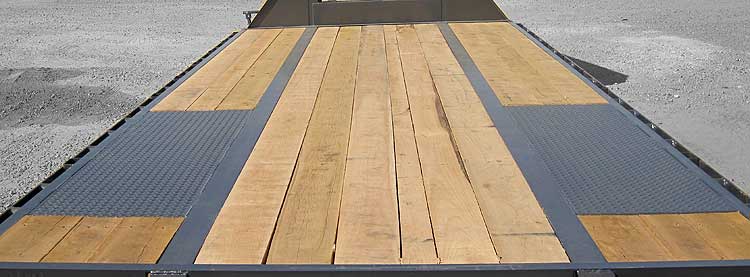

E05 Rough Oak Floor
Cross Members
I0116" Cross-Members

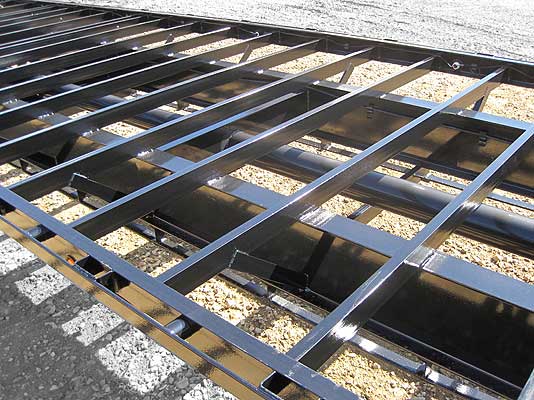

I02 12" Cross-Members
Jacks

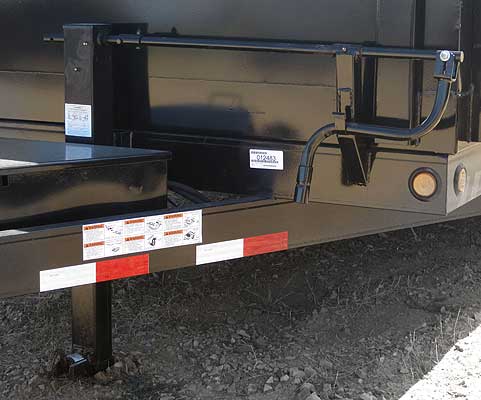

J04Jack Spring Loaded Drop Leg 1-10K (standard)

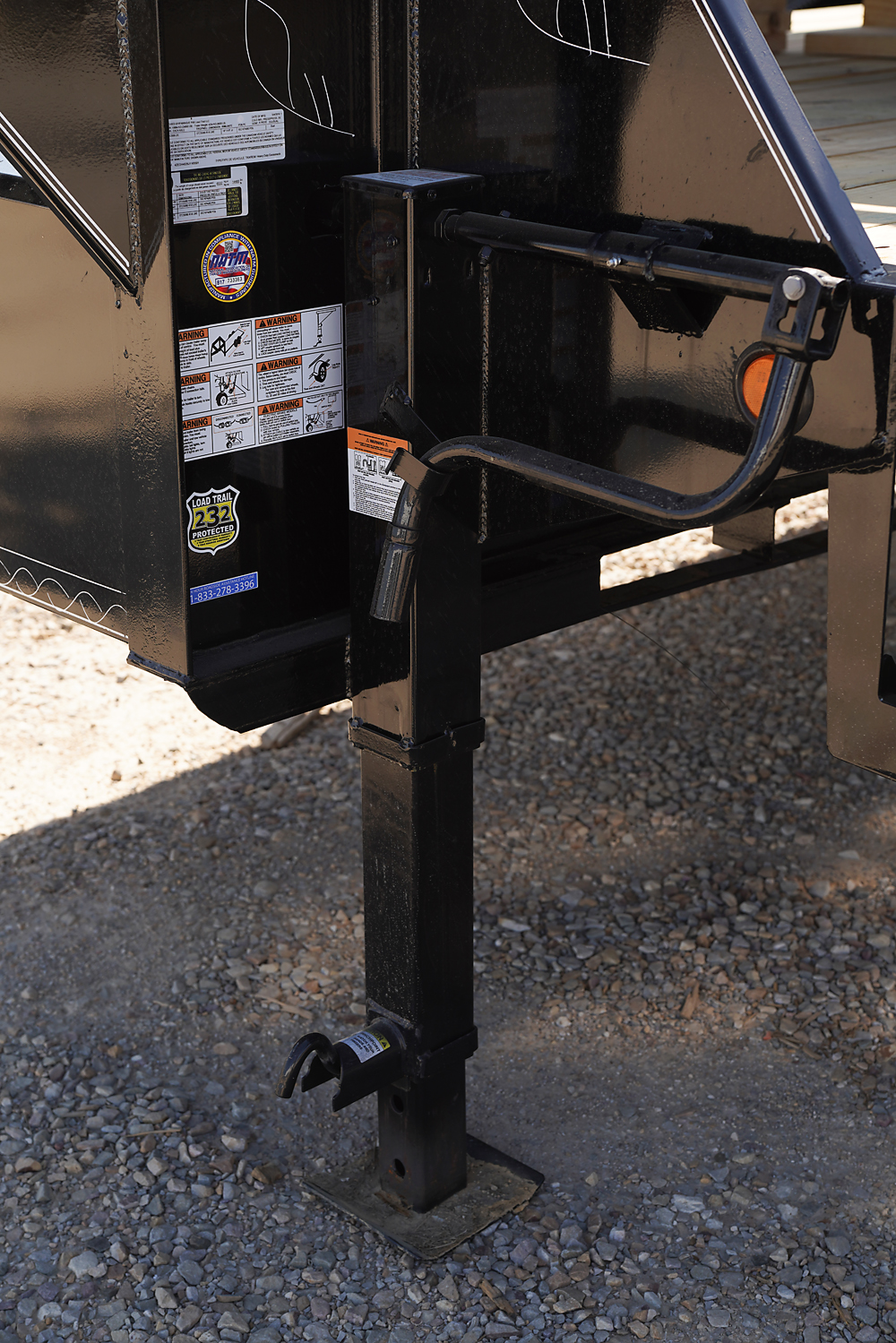

J05 Jack Spring Loaded Drop Leg 2-10K
Lights

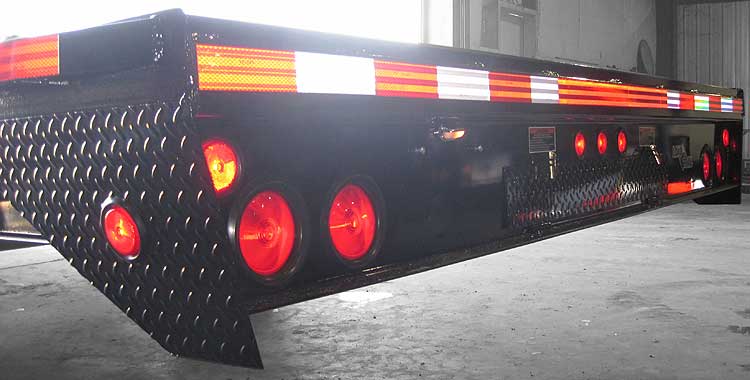

L01Lighting Regular (standard)

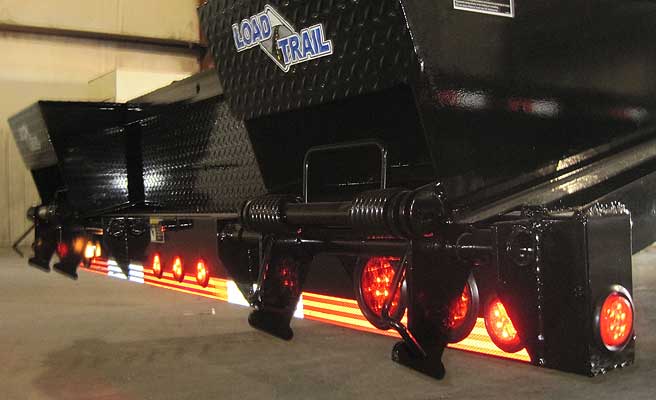

L03 Lighting LED (optional)
D-Rings

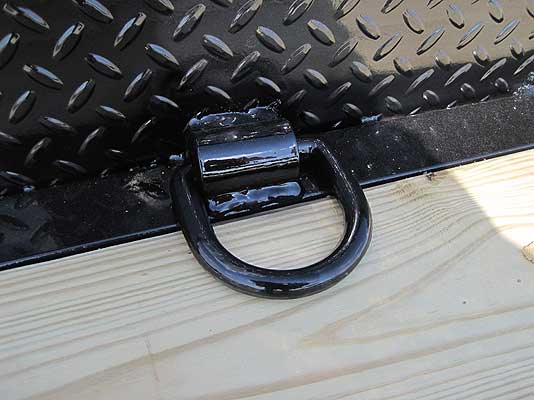

M02D-Rings 3" Weld On (2 additional)
M03 D-Rings 3" Weld On (4 additional)
M07 D-Rings 3" Weld On (6 additional)
M04 D-Rings 4" Recessed 360 Rotational Bolt On (4 each )

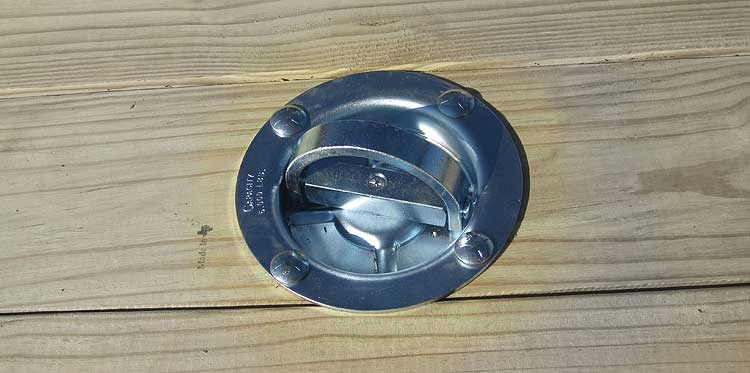

M05 D-Rings 4" Recessed 360 Rotational Bolt On (6 each )
M06 D-Rings 4" Recessed 360 Rotational Bolt On (8 each )
Tool Box

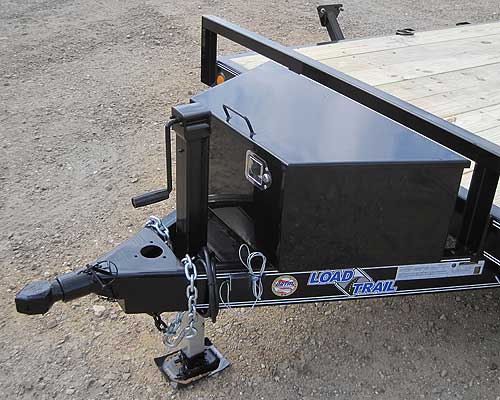

T01Front Tongue Mount Tool Box
T03 Side Tool Box (LH)

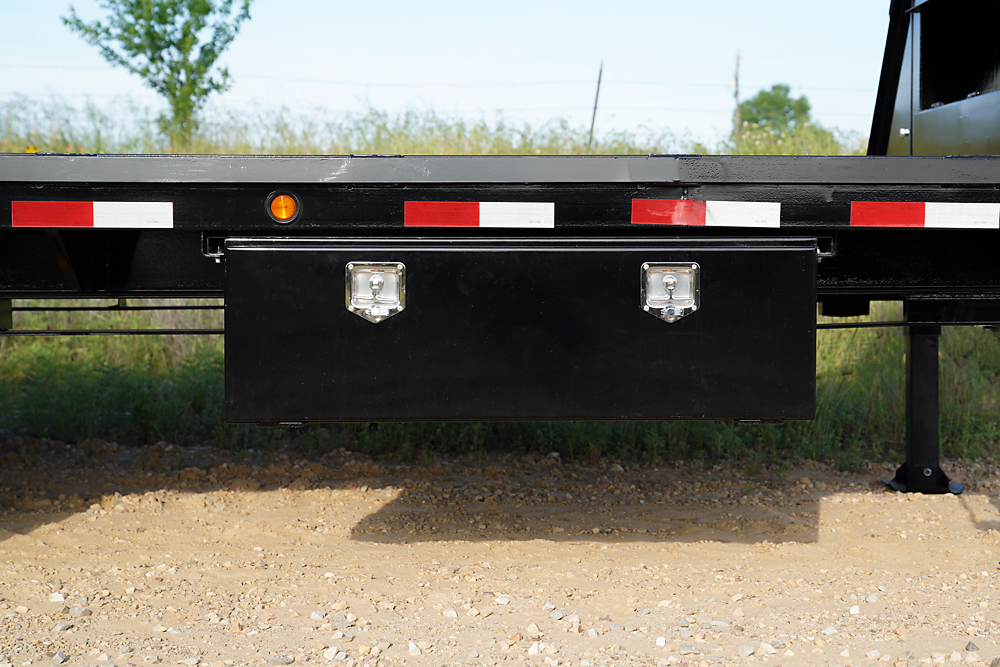

T04 Side Tool Box (RH)
T03T04 Side Tool Box (Both Sides)
Winch

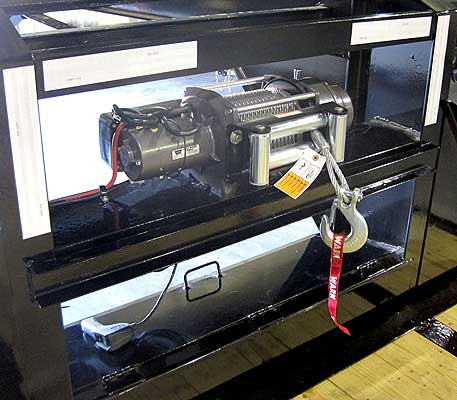

W01Winch Plate
W10 15000lb. Winch PKG(Std Plate,Batt, Charger,Mounting Hdw)
Ratchets & Track
Z01Ratchets Weld-On

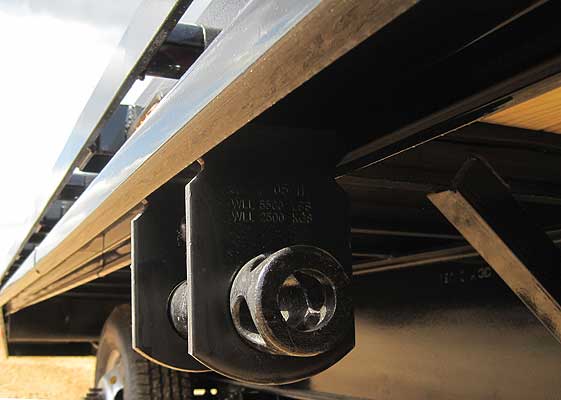

Z02 Ratchets Adjustable

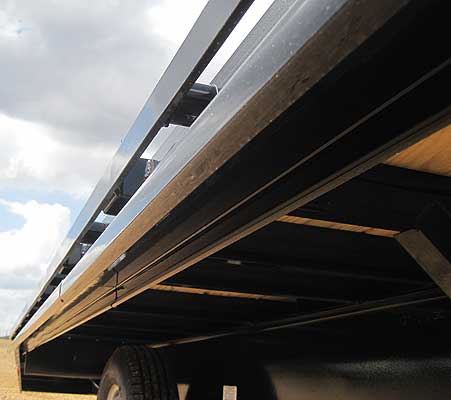

Z03 Ratchet Track Weld-On
Receiver Hitch

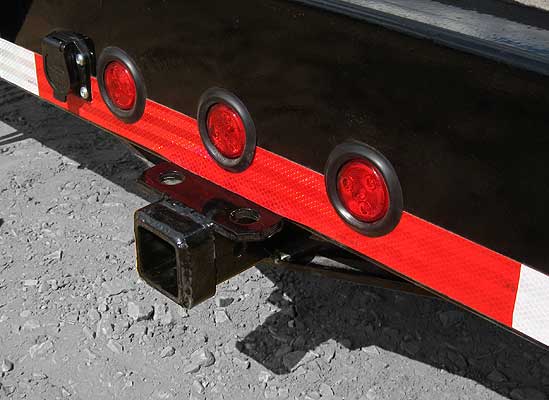

RH1Bumper Attached Receiver Hitch
DK Under Frame Ramp Holder

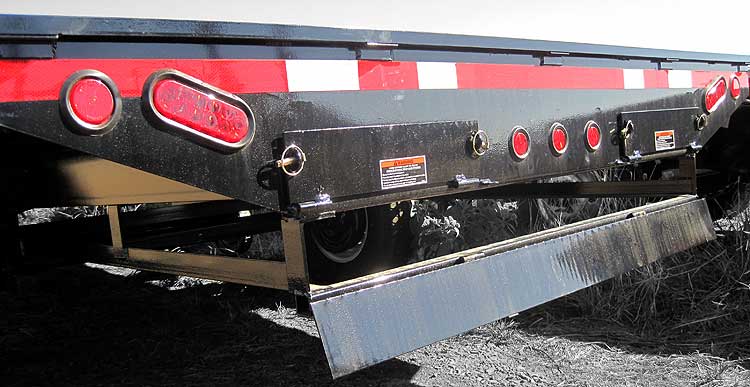

H06Under Frame Ramp Holder Only
Side Steps

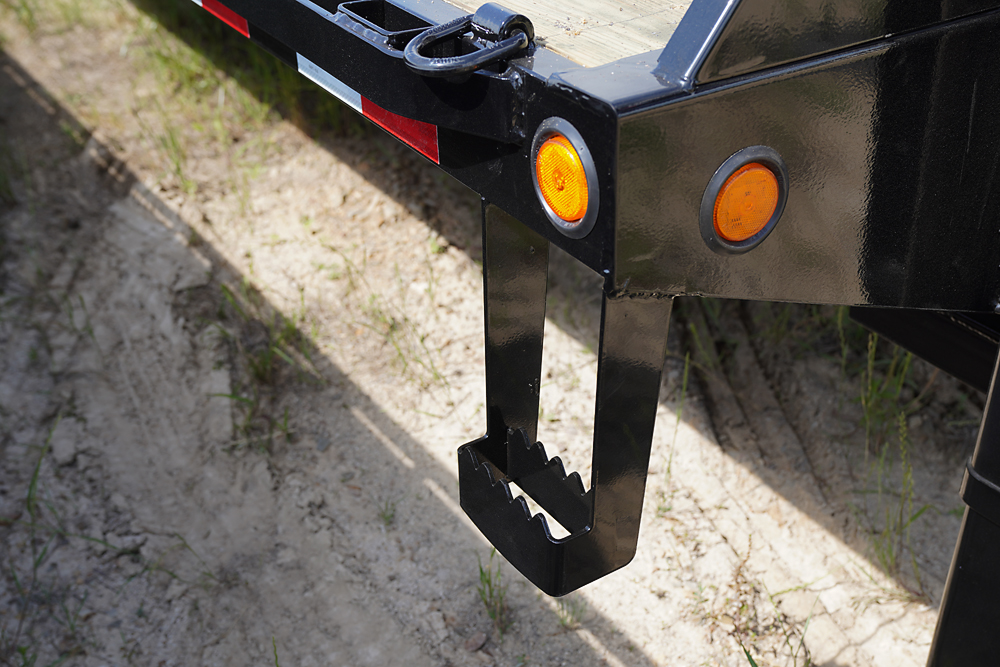

SS1Side Step
Spare Tires

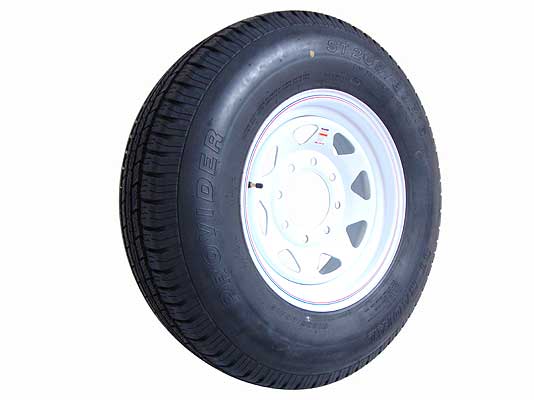

STISpare Tire ST235/80 R16 LRE 10 Ply. 8 Hole White Spoke

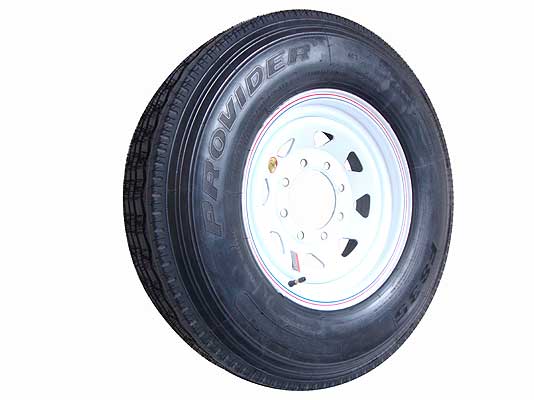

STK Spare Tire ST235/85 R16 LRG 14 Ply. 8 Hole White Spoke
Spare Tire Mount (universal)

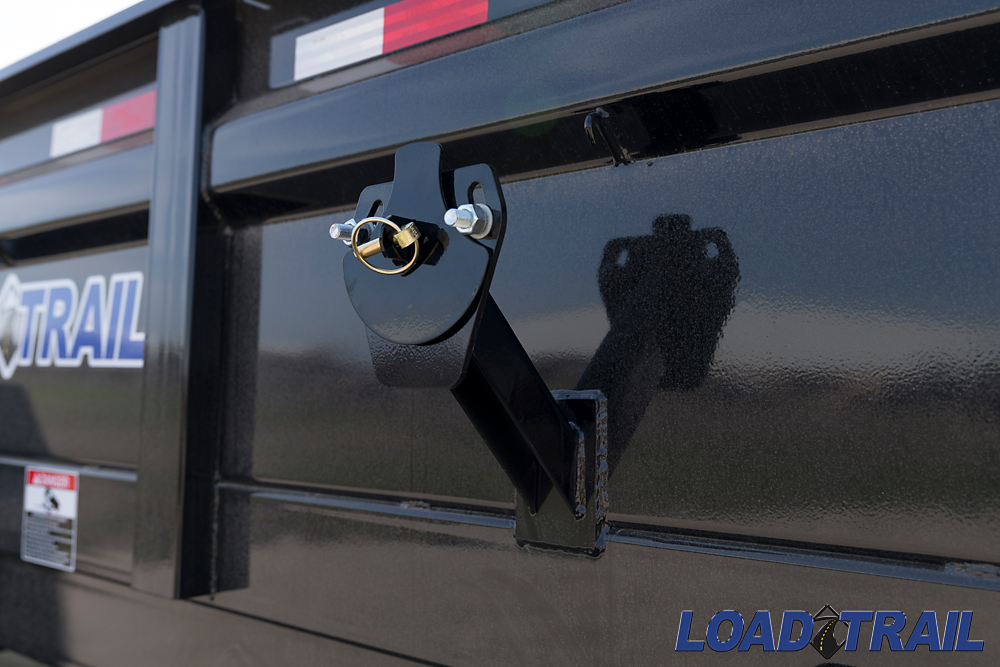

TM1Spare Tire Mount
Road Service Program
RSPRoad Service Program 903-783-3933 for Info. (standard)



Prices, features, and specifications are subject to change without notice.
