GH14 - GN Heavy Duty 14,000 Lb w/12" 14 Lb I-Beam Frame

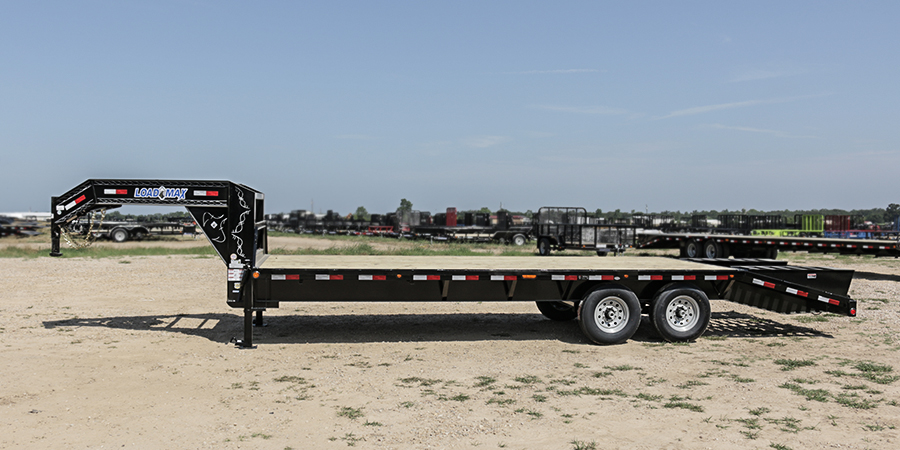

**GH14 stock photo. May be shown with optional equipment.
Click trailer image for a larger view.

Part Description Weight
GH0220072   102" x 20' Heavy Duty Gooseneck 2-7000 lb Axles   4690
GH0222072   102" x 22' Heavy Duty Gooseneck 2-7000 lb Axles   4923
GH0224072   102" x 24' Heavy Duty Gooseneck 2-7000 lb Axles   5143
GH0225072   102" x 25' Heavy Duty Gooseneck 2-7000 lb Axles   5259
GH0226072   102" x 26' Heavy Duty Gooseneck 2-7000 lb Axles   5443
GH0228072   102" x 28' Heavy Duty Gooseneck 2-7000 lb Axles   5667
GH0230072   102" x 30' Heavy Duty Gooseneck 2-7000 lb Axles   5903
GH0232072   102" x 32' Heavy Duty Gooseneck 2-7000 lb Axles   6128
GH0234072   102" x 34' Heavy Duty Gooseneck 2-7000 lb Axles   6360
GH0236072   102" x 36' Heavy Duty Gooseneck 2-7,000 lb Axles w/Under Frame Bridge   6787
GH0238072   102" x 38' Heavy Duty Gooseneck 2-7,000 lb Axles w/Under Frame Bridge   7039
GH0240072   102" x 40' Heavy Duty Gooseneck 2-7,000 lb Axles w/Under Frame Bridge   7288
Includes industry best warranty and (free) roadside assistance program. Read more...
Download Trailer Brochure

Load Trail User Reviews

See what others are saying about Load Trail Heavy Duty Goosenecks and Pintle Hooks: (or write a review today)

"I just purchased one of your trailers. I special ordered it and it was delievered today. Looks good. hope it lasts for a long time. I have friends that have purchased from you, thats why I went with your brand. I like the 232 warranty that comes with it. thanks again for making my custom trailer. Bobby"
--Bobby S. of GA
Owner Since: 9-19-2012

"Needed a heavy trailer to haul from Mission B.C. to Manitoba. The run had to be non-stop due to the kind of load (live honeybees). We needed a dependable heavy hauler and this trailer fit the job. I would definitely recommend these trailers to my neighbors."
--Ted T. of MANITOBA
Owner Since: May 1, 2013

"Our Loadtrail is the nicest gooseneck I've ever pulled. We chose Loadtrail over the other manufacturers simply due to the quality craftsmanship used in building our trailer! We have suggested Loadtrail to several friends locally due to your outstanding quality, and the industries best warranty!"
--Tim T. of IL
Owner Since: 2-18-12

...read all reviews on Load Trail Heavy Duty Goosenecks and Pintle Hooks

Standard Features
GVWR:14,000 lb Product Series:GH14
Neck12" I-Beam (14 lbs/ft) Couplers:2 5/16" Adjustable Coupler Round (20,000 lb)
GAWR:7,000 Lb (ea axle) Axles:2-7,000 Lb Cambered Dexter Spring 2 Elec. Brake
Jack:2-10K Drop Leg Spring Return Safety Chains:18,800 Lb 5/16 x 36 G#70

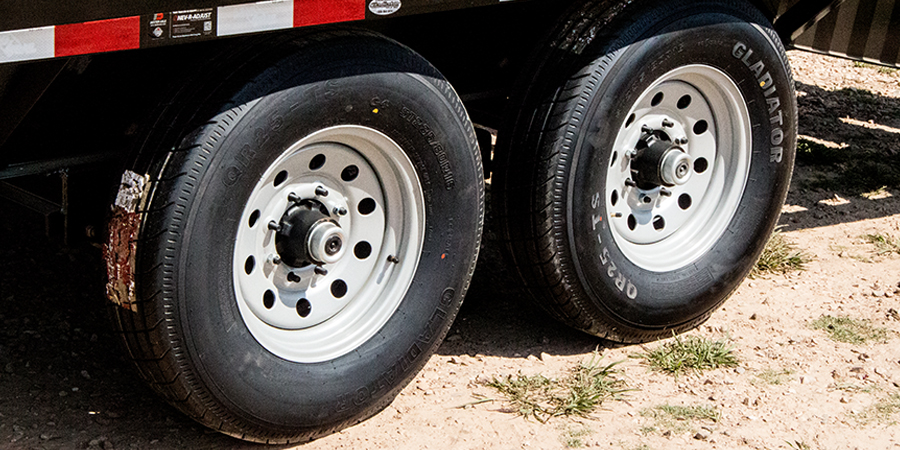

Tires:235/80 R16 LRE (w/ spare) Wheels:16" 8-Hole Sliver Mod

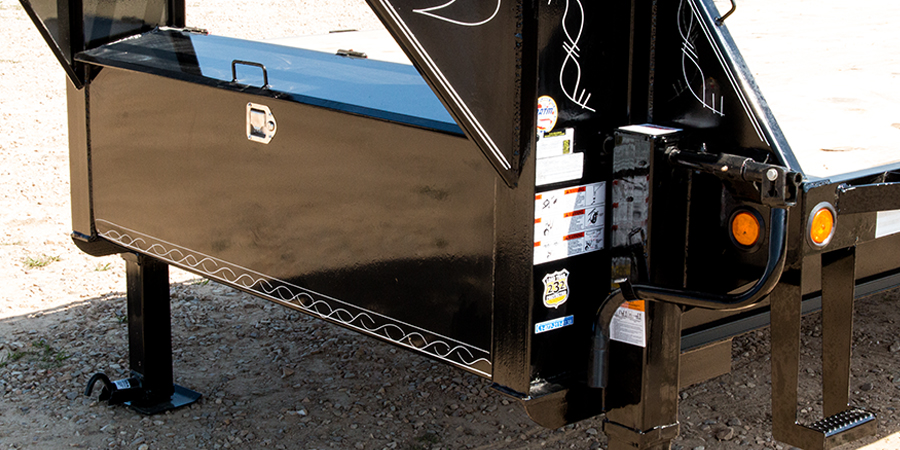

Flooring:Treated Wood Tool Box:Front Tool box
Tongue & Neck:12" I-Beam (14 lbs/ft) Suspension:Multi-Leaf Slipper Spring
Crossmembers3" Channel (3.5 lbs/ft) Frame:12" I-Beam (14 lbs/ft)
Ramps:8' Slide-In Ramps Lights:D.O.T. Stop, Tail, Turn and Clearance LED
Product LineHeavy Duty Goosenecks & Pintle Hooks Wire Harness:16 Ga. 5-Way Double Insulated Harness w/7-way plug
Finishing Coat:Sherwin-Williams Powdura Polyester TGIC Gloss Powder Coating Finish (prep):Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
EWR ClassHEAVY DUTY GOOSENECK

Axle Options:
Code Axle
ES2  2 - 7,000 Lb Dexter Spring Axles (2 Elec Brakes)
ET2  2 - 7,000 Lb Dexter Torsion Axles (DOWN)(2 Elec Brakes)
HS2  2 - 7,000 Lb Dexter Spring Axles (2 Hyd Drum Brakes)
HT2  2 - 7,000 Lb Dexter Torsion Axles (DOWN)(2 Hyd Drum Brakes)
ESB  2 - 7,000 Lb Dexter Axles (2 Elec Brakes)Forward Adjusting


Click to see our Dexter Video Playlist
Color Options:
Code SAMPLE Color
CB2 Black
CR5 Red
CG7 Green
CG3 Grey
CW4 White
CY8 Yellow
CB6 Blue
CO9 Orange

Additional Options:
Tire Upgrades
A05ST235/80 R16 LRE 10 Ply. (standard)
A06 ST235/85 R16 LRG 14 Ply.
Couplers, Frames, Necks & Risers
C14N00Gooseneck Coupler 2-5/16" Adjustable Rd. 14lb. (standard)
C14N01 Coupler 2-5/16" Adjustable Rd. 14 lb. (Raised Neck 6")
C14N02 Coupler 2-5/16" Adjustable Rd. 14 lb. (Raised Neck 12")
C15N00 Gooseneck Coupler 2-5/16" Adjustable Sq. 14 lb.
C15N01 Coupler 2-5/16" Adjustable Sq. 14 lb. (Raised Neck 6")
C15N02 Coupler 2-5/16" Adjustable Sq. 14 lb. (Raised Neck 12")
B06 Gooseneck Coupler 2-5/16" Adjustable Rd. 19lb.
B06C15 Gooseneck Coupler 2-5/16" Adjustable Sq. 19 lb.
B06N01 Coupler 2-5/16" Adjustable Rd. 19 lb. (Raised Neck 6")
B06C15N01 Coupler 2-5/16" Adjustable Sq. 19 lb. (Raised Neck 6")
B06N02 Coupler 2-5/16" Adjustable Rd. 19 lb. (Raised Neck 12")
B06C15N02 Coupler 2-5/16" Adjustable Sq. 19 lb. (Raised Neck 12")
King Pin

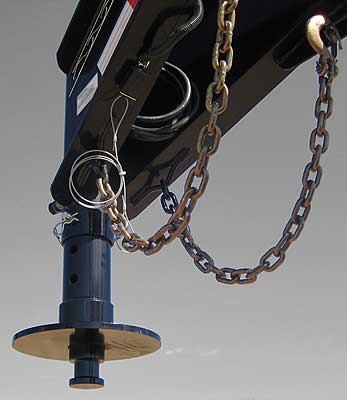

C50King Pin Fifth-Wheel Adapter Adjustable Rd.
C51 King Pin Fifth-Wheel Adapter Adjustable Sq.
Dove Tail & Floors
D00Straight Deck w/8' Slide In Ramps (standard)
D10 5' Self Clean Dove w/Slide In Ramps
D11 5' Dove w/Wood & 2 Flip Over Ramps
D12 5' Dove w/Wood & 2 Slide In Ramps
D13 5' Self Clean Dove w/2 Flip Over Ramps
D14 5' Self Clean Dove w/3 Flip Over Ramps
D15 5' Center Pop Up w/2 Flip Over Ramps
D16 5' Pop Up w/2 Slide In Ramps

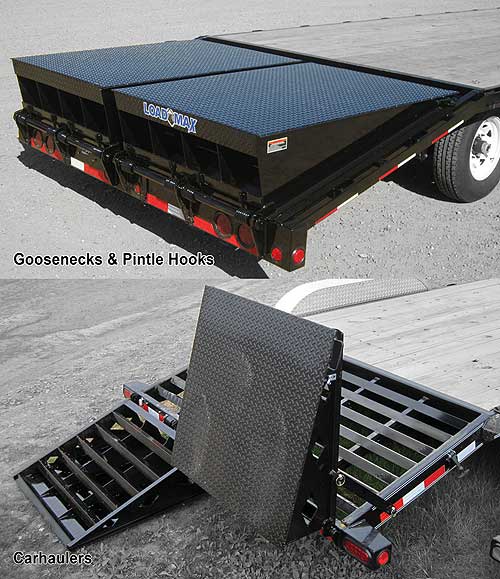

H08 Multi Purpose Equipment Dove
D00E03 Straight Deck w/8' Slide In Ramps (Steel Floor DP)
D10E03 5' Self Clean Dove w/Slide In Ramps (Steel Floor DP)
D13E03 5' Self Clean Dove w/2 Flip Over Ramps (Steel Floor DP)
D14E03 5' Self Clean Dove w/3 Flip Over Ramps (Steel Floor DP)
D15E03 5' Center Pop Up w/2 Flip Over Ramps (Steel Floor DP)
D16E03 5' Pop Up w/2 Slide In Ramps (Steel Floor DP)
H08E03 Multi Purpose Equipment Dove (Steel Floor DP)
D00E05 Straight Deck w/8' Slide In Ramps (Rough Oak Floor)
D10E05 5' Self Clean Dove w/Slide In Ramps (Rough Oak Floor)
D13E05 5' Self Clean Dove w/2 Flip Over Ramps (Rough Oak Floor)
D14E05 5' Self Clean Dove w/3 Flip Over Ramps (Rough Oak Floor)
D15E05 5' Center Pop Up w/2 Flip Over Ramps (Rough Oak Floor)
D16E05 5' Pop Up w/2 Slide In Ramps (Rough Oak Floor)
H08E05 Multi Purpose Equipment Dove (Rough Oak Floor)
Fenders

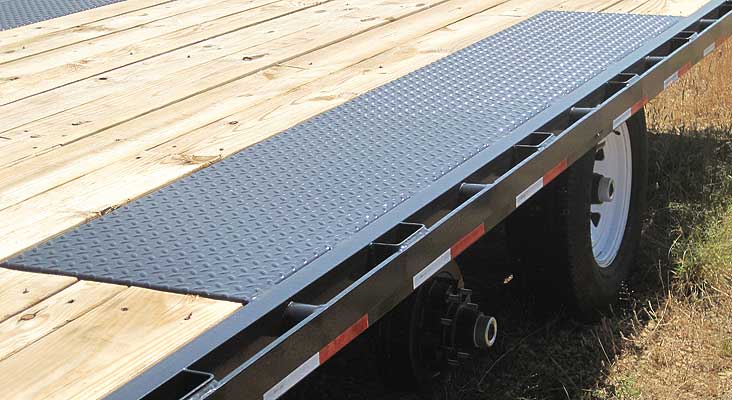

F99Diamond Plate Over Wheels
Cross Members
I0116" Cross-Members
I02 12" Cross-Members
Jacks
J05Jack Spring Loaded Drop Leg 2-10K (standard)
J06 Jack Spring Loaded Drop Leg 2-Speed 2-25K
J07 Jack Spring Loaded Drop Leg 2-10K Hyd.
J08 Jack Spring Loaded Drop Leg 2-10K Elec.
D-Rings
M02D-Rings 3" Weld On (2 additional)
M03 D-Rings 3" Weld On (4 additional)
M07 D-Rings 3" Weld On (6 additional)
M04 D-Rings 4" Recessed 360 Rotational Bolt On (4 each )
M05 D-Rings 4" Recessed 360 Rotational Bolt On (6 each )
M06 D-Rings 4" Recessed 360 Rotational Bolt On (8 each )
M21 4 - 3" Removable D-Rings
Tool Box
T03Side Tool Box (LH)
T04 Side Tool Box (RH)
T03T04 Side Tool Box (Both Sides)
Frame Bridge
U00Standard Frame w/out Bridge (standard)

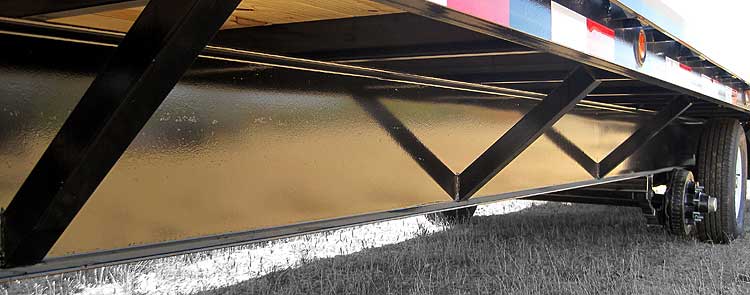

U01 Under Frame Bridge
U02 Pipe Bridge
Winch
W01Winch Plate (8" Channel)
W10 15000lb.Winch PKG(Std 8"Channel, Batt, Charger,Mounting Hdw)
Ratchets & Track
Z01Ratchets Weld-On
Z02 Ratchets Adjustable
Z03 Ratchet Track Weld-On
Deck Over Neck

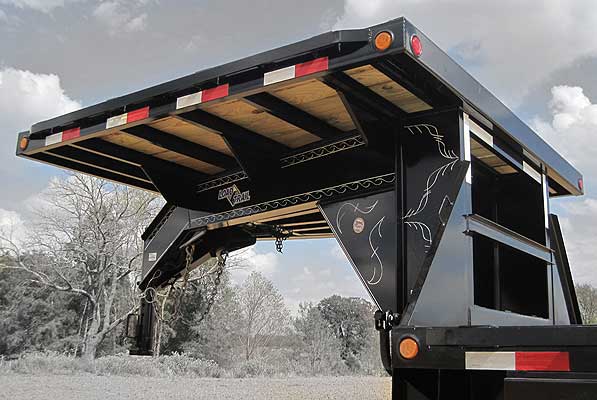

DO1Deck Over Neck 102" X 96"
Receiver Hitch
RH1Bumper Attached Receiver Hitch
Rear Support Jacks
RS2Rear Support Stands (Tube)
Side Steps
SS1Second Side Step
Stand Up Ramps
SR1Ramp Support Arms
Spare Tire Mount (universal)
TM1Spare Tire Mount
Road Service Program
RSPRoad Service Program 903-783-3933 for Info. (standard)


Prices, features, and specifications are subject to change without notice.
