GP24 - GN Low-Pro 24,000 Lb w/12" 19 Lb I-Beam Frame

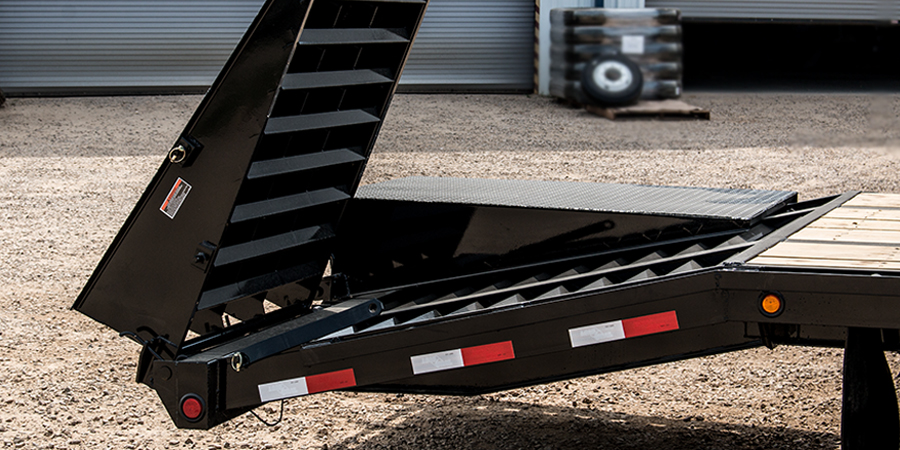

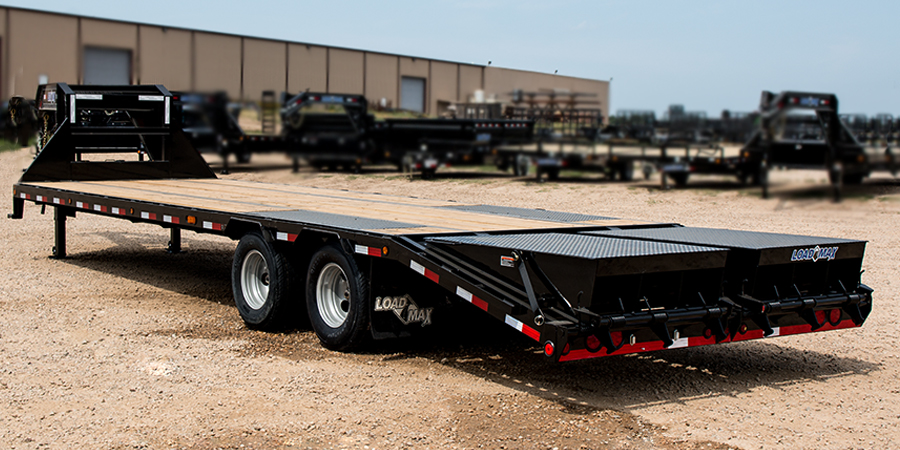

**GP24 stock photo. May be shown with optional equipment.
Click trailer image for a larger view.

Part Description Weight
GP0220122   102" X 20' Low-Pro Gooseneck 2-12,000 lb Axles   6484
GP0222122   102" X 22' Low-Pro Gooseneck 2-12,000 lb Axles   6742
GP0224122   102" X 24' Low-Pro Gooseneck 2-12,000 lb Axles   7018
GP0225122   102" X 25' Low-Pro Gooseneck 2-12,000 lb Axles   7136
GP0226122   102" X 26' Low-Pro Gooseneck 2-12,000 lb Axles   7368
GP0228122   102" X 28' Low-Pro Gooseneck 2-12,000 lb Axles   7655
GP0230122   102" X 30' Low-Pro Gooseneck 2-12,000 lb Axles   7908
GP0232122   102" X 32' Low-Pro Gooseneck 2-12,000 lb Axles   8167
GP0234122   102" X 34' Low-Pro Gooseneck 2-12,000 lb Axles   8431
GP0235122   102" X 35' Low-Pro Gooseneck 2-12,000 lb Axles   8431
GP0236122   102" X 36' Low-Pro Gooseneck 2-12,000 lb Axles w/Under Frame Bridge   9528
GP0240122   102" X 40' Low-Pro Gooseneck 2-12,000 lb Axles w/Under Frame Bridge   10207
Includes industry best warranty and (free) roadside assistance program. Read more...
Download Trailer Brochure
Standard Features
Product LineLow-Pro Gooseneck Pintle Hooks Product Series:GP24
GVWR:24,000 lb GAWR:12,000 lbs (per axle)
Couplers:2 5/16" Adjustable Coupler Round (25,000 lb) Neck12" I-Beam (19 lbs/ft)
Safety Chains:26400 Lb 3/8 x 36 G#70 Jack:2-10K Drop Leg Spring Return
Axles:2-12,000 Lb Dexter Spring Elec Brakes Wheels:16" 8-Hole Duals
Tires:235/80 R16 LRE (w/ spare) Suspension:Multi-Leaf Slipper Spring
Frame:12" I-Beam (19 lbs/ft) Crossmembers3" Channel 16" OC (3.5 lbs/ft)
Tool Box:Front Tool box Flooring:Treated Wood
Ramps:8' Slide-In Ramps Lights:D.O.T. Stop, Tail, Turn and Clearance LED
Wire Harness:16 Ga. 5-Way Double Insulated Harness w/7-way plug Finishing Coat:Sherwin-Williams Powdura Polyester TGIC Gloss Powder Coating
Finish (prep):Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion Tongue & Neck:12" I-Beam (19 lbs/ft)
EWR ClassHEAVY DUTY GOOSENECK GVWR:24,000 lb
Product Series:GP24 Neck12" I-Beam (19 lbs/ft)
Couplers:2 5/16" Adjustable Coupler Round (25,000 lb) GAWR:12,000 lbs (per axle)
Axles:2-12,000 Lb Dexter Spring Elec Brakes Jack:2-10K Drop Leg Spring Return
Safety Chains:26400 Lb 3/8 x 36 G#70 Tires:235/80 R16 LRE (w/ spare)
Wheels:16" 8-Hole Duals Flooring:Treated Wood
Tool Box:Front Tool box Suspension:Multi-Leaf Slipper Spring
Crossmembers3" Channel 16" OC (3.5 lbs/ft) Tongue & Neck:12" I-Beam (19 lbs/ft)
Frame:12" I-Beam (19 lbs/ft) Lights:D.O.T. Stop, Tail, Turn and Clearance LED
Ramps:8' Slide-In Ramps Product LineLow-Pro Gooseneck Pintle Hooks
Wire Harness:16 Ga. 5-Way Double Insulated Harness w/7-way plug Finishing Coat:Sherwin-Williams Powdura Polyester TGIC Gloss Powder Coating
Finish (prep):Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion EWR ClassHEAVY DUTY GOOSENECK

Axle Options:
Code Axle
ES2  2 - 12000 Lb Dexter Spring Axles (2 Elec Brakes)
HS2  2 - 12000 Lb Dexter Spring Axles (2 Hyd Disc Brakes)
ES2  2 - 12000 Lb Dexter Axles (2 Elec Brakes)
HS2  2 - 12000 Lb Dexter Axles (2 Hyd Brakes)


Click to see our Dexter Video Playlist
Color Options:
Code SAMPLE Color
CB2 Black
CR5 Red
CG7 Green
CG3 Grey
CW4 White
CY8 Yellow
CB6 Blue
CO9 Orange

Additional Options:
Tire Upgrades
A05ST235/80 R16 LRE 10 Ply. (standard)
A06 ST235/85 R16 LRG 14 Ply.
A08 ST235/80 R16 LRE 10 Ply. (Dexter)
A09 ST235/85 R16 LRG 14 Ply. (Dexter)
Couplers, Frames, Necks & Risers
C14N00Gooseneck Coupler 2-5/16" Adjustable Rd. 19 lb. I-B (standard)
C14N01 Coupler 2-5/16" Adjustable Rd. 19 lb. (Raised Neck 6")
C14N02 Coupler 2-5/16" Adjustable Rd. 19 lb. (Raised Neck 12")
C15N00 Gooseneck Coupler 2-5/16" Adjustable Sq. 19 lb. I-B
C15N01 Coupler 2-5/16" Adjustable Sq. 19 lb. (Raised Neck 6")
C15N02 Coupler 2-5/16" Adjustable Sq. 19 lb. (Raised Neck 12")
B07 Gooseneck Coupler 2-5/16" Adjustable Rd. 22 lb. I-Beam
B07C15 Gooseneck Coupler 2-5/16" Adjustable Sq. 22 lb. I-B
B07N01 Coupler 2-5/16" Adjustable Rd. 22 lb. (Raised Neck 6")
B07C15N01 Coupler 2-5/16" Adjustable Sq. 22 lb. (Raised Neck 6")
B07N02 Coupler 2-5/16" Adjustable Rd. 22 lb. (Raised Neck 12")
B07C15N02 Coupler 2-5/16" Adjustable Sq. 22 lb. (Raised Neck 12")
King Pin
C50King Pin Fifth-Wheel Adapter Adjustable Rd.
C51 King Pin Fifth-Wheel Adapter Adjustable Sq.
Dove Tail & Floors
D00Straight Deck w/8' Slide In Ramps (standard)
D10 5' Self Clean Dove w/Slide In Ramps
D11 5' Dove w/Wood & 2 Flip Over Ramps
D12 5' Dove w/Wood & 2 Slide In Ramps
D13 5' Self Clean Dove w/2 Flip Over Ramps
D14 5' Self Clean Dove w/3 Flip Over Ramps
D15 5' Center Pop Up w/2 Flip Over Ramps
D00E03 Straight Deck w/8' Slide In Ramps (Steel Floor DP)
D10E03 5' Self Clean Dove w/Slide In Ramps (Steel Floor DP)
D13E03 5' Self Clean Dove w/2 Flip Over Ramps (Steel Floor DP)
D14E03 5' Self Clean Dove w/3 Flip Over Ramps (Steel Floor DP)
D15E03 5' Center Pop Up w/2 Flip Over Ramps (Steel Floor DP)
D00E05 Straight Deck w/8' Slide In Ramps (Rough Oak Floor)
D10E05 5' Self Clean Dove w/Slide In Ramps (Rough Oak Floor)
D13E05 5' Self Clean Dove w/2 Flip Over Ramps (Rough Oak Floor)
D14E05 5' Self Clean Dove w/3 Flip Over Ramps (w/Rough Oak Floor)
D15E05 5' Center Pop Up w/2 Flip Over Ramps (w/Rough Oak Floor)
Cross Members
I0212" Cross-Members
Jacks
J05Jack Spring Loaded Drop Leg 2-10K (standard)
J06 Jack Spring Loaded Drop Leg 2-Speed 2-25K
J07 Jack Spring Loaded Drop Leg 2-10K Hyd.
J08 Jack Spring Loaded Drop Leg 2-10K Elec.
D-Rings
M02D-Rings 3" Weld On (2 additional)
M03 D-Rings 3" Weld On (4 additional)
M07 D-Rings 3" Weld On (6 additional)
M04 D-Rings 4" Recessed 360 Rotational Bolt On (4 each )
M05 D-Rings 4" Recessed 360 Rotational Bolt On (6 each )
M06 D-Rings 4" Recessed 360 Rotational Bolt On (8 each )
Tool Box
T03Side Tool Box (LH)
T04 Side Tool Box (RH)
T03T04 Side Tool Box (Both Sides)
Frame Bridge
U00Standard Frame w/out Bridge (standard)
U01 Under Frame Bridge
U02 Pipe Bridge
U01U02 Under Frame Bridge & Pipe Bridge
Winch
W01Winch Plate
W10 15000lb. Winch PKG(Std Plate,Batt, Charger,Mounting Hdw)
Axle Suspensions
Y00Standard Axle Suspention (standard)
Y01 Spread Axles 6"
Y02 Spread Axles 72"
Y10 Hutch Suspension
Y14 Hanger Kit 12k 42" Dexter
Y15 Hanger Kit 12k 48-1/4" Dexter
Ratchets & Track
Z01Ratchets Weld-On
Z02 Ratchets Adjustable
Z03 Ratchet Track Weld-On
Deck Over Neck
DO1Deck Over Neck 102" X 96"
Receiver Hitch
RH1Bumper Attached Receiver Hitch
Rear Support Jacks
RS2Rear Support Stands (Tube)
Side Steps
SS1Second Side Step
Spare Tire Mount (universal)
TM1Spare Tire Mount
Stand Up Ramps
SR1Ramp Support Arms
Road Service Program
RSPRoad Service Program 903-783-3933 for Info. (standard)


Prices, features, and specifications are subject to change without notice.
