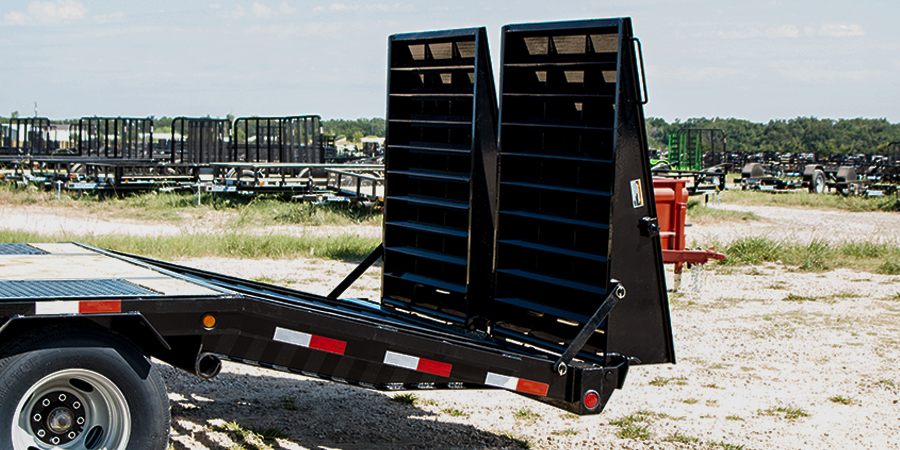

PP22 - Pintle Hook Low-Pro 22,000 Lb w/12" 19 Lb I-Beam Frame

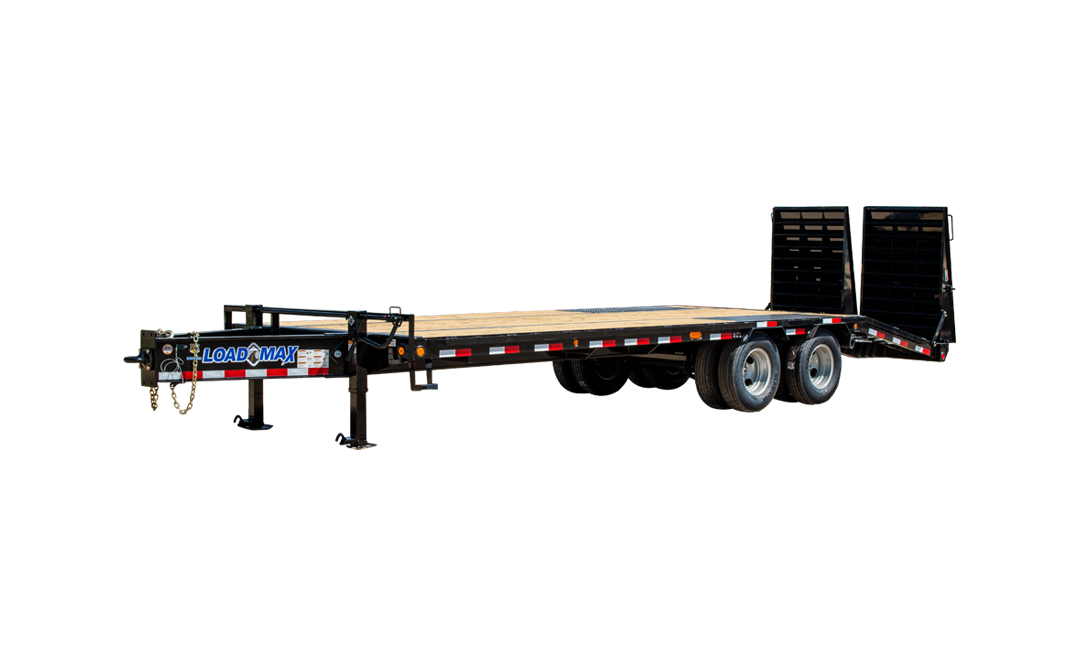

**PP22 stock photo. May be shown with optional equipment.
Click trailer image for a larger view.
|
|
|
| Part |
Description |
Weight |
| PP0220102 |
102" X 20' Low-Pro Pintle Hook 2-10,000 lb Axles |
5766 |
| PP0222102 |
102" X 22' Low-Pro Pintle Hook 2-10,000 lb Axles |
6050 |
| PP0224102 |
102" X 24' Low-Pro Pintle Hook 2-10,000 lb Axles |
6326 |
| PP0225102 |
102" X 25' Low-Pro Pintle Hook 2-10,000 lb Axles |
6444 |
| PP0226102 |
102" X 26' Low-Pro Pintle Hook 2-10,000 lb Axles |
6677 |
| PP0228102 |
102" X 28' Low-Pro Pintle Hook 2-10,000 lb Axles |
6963 |
| PP0230102 |
102" X 30' Low-Pro Pintle Hook 2-10,000 lb Axles |
7217 |
| PP0232102 |
102" X 32' Low-Pro Pintle Hook 2-10,000 lb Axles |
7475 |
| PP0234102 |
102" X 34' Low-Pro Pintle Hook 2-10,000 lb Axles |
7740 |
| PP0236102 |
102" X 36' Low-Pro Pintle Hook 2-10,000 lb Axles w/Under Frame Bridge |
8214 |
| PP0238102 |
102" X 38' Low-Pro Pintle Hook 2-10,000 lb Axles w/Under Frame Bridge |
8497 |
| PP0240102 |
102" X 40' Low-Pro Pintle Hook 2-10,000 lb Axles w/Under Frame Bridge |
8800 |
Includes industry best warranty and (free) roadside assistance program. Read more... |
|
Load Trail User Reviews
See what others are saying about Load Trail Low-Pro Gooseneck Pintle Hooks: (or write a review today)
"Well, I have used a friend of mine trailer which was the same trailer that I just recently purchased. Fell right in love with it the first time I used it. Which by the way have used now about 12 to 14 times. He finally told me that I should buy my own, So with that I started shopping around in the neighboring area's and the surrounding states. Some dealers had them in stock and some didnt. Found one in Tenn. over 470 miles away and called and email them for over a month and decided to buy it. Well the next evening had to use my friends trailer again and after took it back to him I told him that I was going to buy my own. So, went back on the dealer's home page to look again at the trailer picture's again and started looking at other dealer's trailer they had in stock and that's when I found Spencer's Trailer Sales. I called and talked to Don, man he was great, when over what he had and he had excatly what i wanted with some extra options on them which the other dealers trailer didnt have. We emailed back and forth and phone calls over the trailer and deceided what date I would be there in Indaina coming from Marland, we agrred upon a date, I gave him the deposit over the phone on 6/12/2006. I aam picking up my trailer now in Indaina approx. 13 to 14 hours away from my house. Don gave me the best price with option, didnt have to order and is great working with me to hold that trailer at his dealership untill I get there to pick it up on 7/9/2012. Cant wait. No wonder your one of the leading trailer manufacture's with people family own business's with trailer dealers like don and his family at Spencer's Trailer Sale's in Spencer, Indiana. They are really great people to deal with and understand the 13 to 14 hour one way drive over 790 miles one way and really I feel like they gave me the best deal and courtesy that anyone could ever give. Just cant wait for July 9, 2012 to get here to get my trailer. Yes, I definetly recommend your trailer to anyone and everyone I talk to about these trailer's and even refer them to Don at Spencer's Trailer Sale's. The trailer far exceeds my expectations and so glad my friend had one for me to use and now to purchase my own is the best. Love this model trailer, will work gerat for anything and everything I am going to use it for." --Michael P. of MD. Owner Since: June 6,2012 |
"I have now had the trailer for about a week. It has met every expectation. I love the amount of led lighting and the hydralic dove tail. It is 30' model and pulls the best. I chose load trail because I heard from another person who uses them on long hauls alot and he said it was the only way to go if you are on the road alot. I would definetly recommend the trailers." --Jon A. of KY Owner Since: 5-6-2013 |
"This is the second load max trailer that I have owned and am very well satisfied with the product. My first load max was a gooseneck deckover and the bed was 15 ft. with a 5 ft. self cleaning dove tail with three foldover ramps. I hauled antique pulling tractors. I no longer have these tractors and am now into street rods and old trucks so I bought a lo-pro gooseneck 22x2 ft. dove tail with the stand up split 5 ft. ramps. I truly believe this trailer will be more useful in the long run than the other one was." --Mark M. of INDIANA Owner Since: 4-13-2013 |
...read all reviews on Load Trail Low-Pro Gooseneck Pintle Hooks
| Standard Features |
|
| GVWR: | 22,000 lb |
Product Series: | PP22 |
| Couplers: | 3" Bolt On Adjustable Pintle Eye (50,000lb) |
GAWR: | 10,000 lbs (per axle) |
| Axles: | 2-10,000 Lb Dexter Spring Elec Brakes |
Jack: | 2-10K Drop Leg Spring Return |
| Safety Chains: | 26400 Lb 3/8 x 36 G#70 |
Tires: | 235/80 R16 LRE (w/ spare) |
| Wheels: | 16" 8-Hole Duals |
Flooring: | Treated Wood |
| Tongue & Neck: | 12" I-Beam (19 lbs/ft) |
Suspension: | Multi-Leaf Slipper Spring |
| Crossmembers | 3" Channel 16" OC (3.5 lbs/ft) |
Frame: | 12" I-Beam (19 lbs/ft) |
| Ramps: | 8' Slide-In Ramps |
Lights: | D.O.T. Stop, Tail, Turn and Clearance LED |
| Product Line | Low-Pro Gooseneck Pintle Hooks |
Wire Harness: | 16 Ga. 5-Way Double Insulated Harness w/7-way plug |
| Finishing Coat: | Sherwin-Williams Powdura Polyester TGIC Gloss Powder Coating |
Finish (prep): | Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion |
| EWR Class | HEAVY DUTY PINTLE |
| |
| Axle Options: |
| Code |
Axle |
| ES2 |
2 - 10000 Lb Dexter Sprg Axles (2 Elec Brakes) Std Sprd |
| HS2 |
2 - 10000 Lb Dexter Sprg Axles (2 Hyd Disc Brakes)Std Sprd |
| ES2Y01 |
2 - 10000 Lb Dexter Sprg Axles (2 Elec Brakes) 6" Sprd |
| HS2Y01 |
2 - 10000 Lb Dexter Sprg Axles (2 Hyd Disc Brakes)6" Sprd |
| ET2 |
2 - 10000 Lb Dexter Torsion Axles (LEVEL)(2 Elec Brakes)
|
| HT2 |
2 - 10000 Lb Dexter Torsion Axles(LEVEL(2 Hyd Drum Brakes)
|
| AS2 |
2 - 10000 Lb Dexter Spring Axles (2 Air Brakes)
|
| ES2Y02 |
2 - 10000 Lb Dexter Sprg Axles (2 Elec Brakes) 72" Sprd |
| ES2Y10 |
2 - 10000 Lb Dexter Sprg Axles (2 Elec Brakes) Hutch |
| HS2Y02 |
2 - 10000 Lb Dexter Sprg Axles (2 Hyd Disc Brakes)72" Sprd |
| HS2Y10 |
2 - 10000 Lb Dexter Sprg Axles (2 Hyd Disc Brakes)Hutch |
| ES2 |
2 - 10000 Lb Dexter Sprg Axles (2 Elec Brakes)Std Sprd(4.88) |
| ES2Y01 |
2-10000 Lb Dexter Sprg Axles (2 Elec Brakes) 6" Sprd(4.88) |
| ES2Y02 |
2 - 10000 Lb Dexter Sprg Axles (2 Elec Brakes)72" Sprd(4.88) |
| ES2Y10 |
2 - 10000 Lb Dexter Sprg Axles (2 Elec Brakes) Hutch(4.88) |
Click to see our Dexter Video Playlist |
| Color Options: |
| Code |
SAMPLE |
Color |
| CB2 |
 |
Black
|
| CR5 |
 |
Red
|
| CG7 |
 |
Green
|
| CG3 |
 |
Grey
|
| CW4 |
 |
White
|
| CY8 |
 |
Yellow
|
| CB6 |
 |
Blue
|
| CO9 |
 |
Orange |
|
| Additional Options: |
| Tire Upgrades |
| A05 | ST235/80 R16 LRE 10 Ply.
(standard)

|
| A06 | ST235/85 R16 LRG 14 Ply.
|
| A08 | ST235/80 R16 LRE 10 Ply. (Dexter)
|
| A09 | ST235/85 R16 LRG 14 Ply. (Dexter)
|
| Couplers Tongue & Frames |

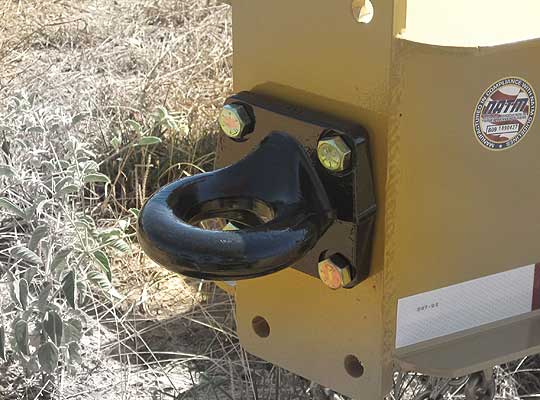

| C12 | Pintle Ring 3" Adjustable Plate Mount 19 lb. I-Beam
(standard)

|

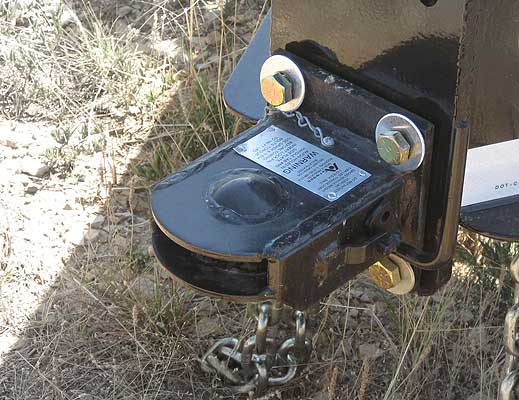

| C09 | Coupler 2-5/16" Adjustable Flat Mount Turtle 19 lb. I-Beam
|

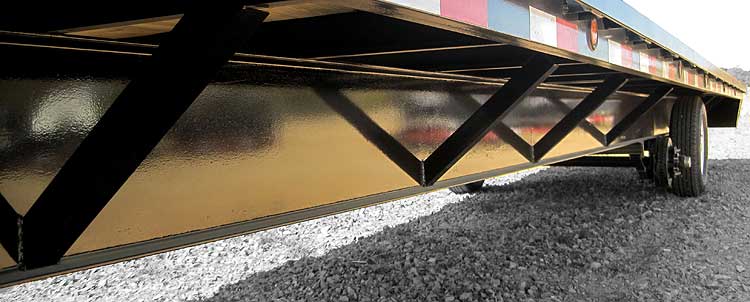

| B07 | Pintle Ring 3" Adjustable Plate Mount 22 lb. I-Beam
|
| B07C09 | Coupler 2-5/16" Adjustable Flat Mount Turtle 22 Ib. I-Beam
|
| Dove Tail & Floors |

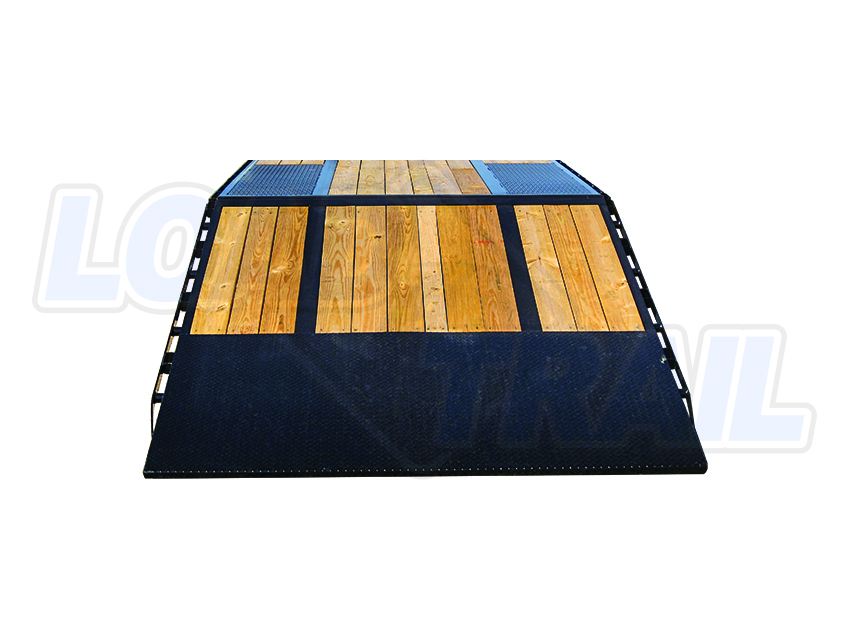

| D00 | Straight Deck w/8' Slide In Ramps
(standard)

|
| D10 | 5' Self Clean Dove w/Slide In Ramps
|

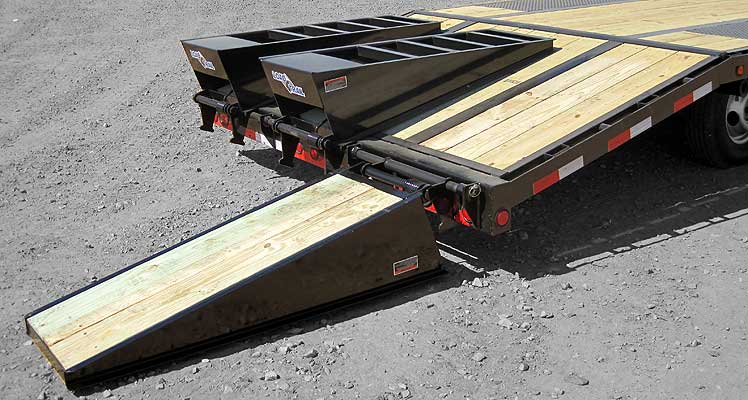

| D11 | 5' Dove w/Wood & 2 Flip Over Ramps
|
| D12 | 5' Dove w/Wood & 2 Slide In Ramps
|

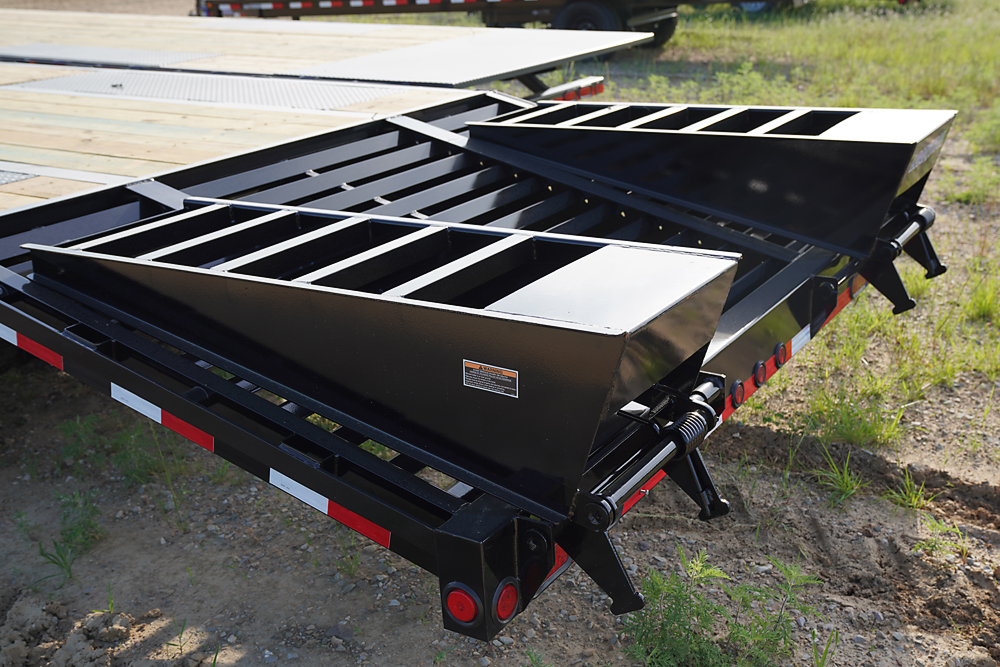

| D13 | 5' Self Clean Dove w/2 Flip Over Ramps
|
| D14 | 5' Self Clean Dove w/3 Flip Over Ramps
|

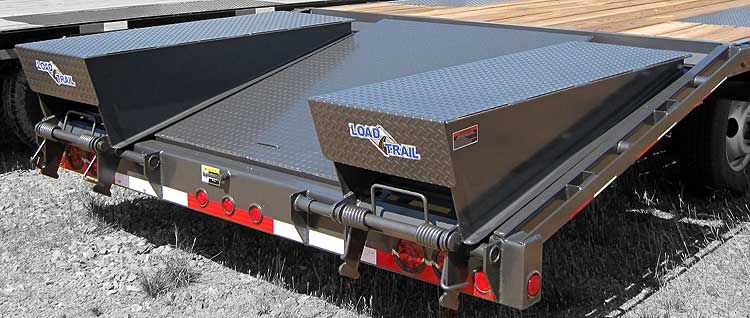

| D15 | 5' Center Pop Up w/2 Flip Over Ramps
|
| D00E03 | Straight Deck w/8' Slide In Ramps (Steel Floor DP)
|
| D10E03 | 5' Self Clean Dove w/Slide In Ramps (Steel Floor DP)
|
| D13E03 | 5' Self Clean Dove w/2 Flip Over Ramps (Steel Floor DP)
|
| D14E03 | 5' Self Clean Dove w/3 Flip Over Ramps (Steel Floor DP)
|
| D15E03 | 5' Center Pop Up w/2 Flip Over Ramps (Steel Floor DP)
|
| D00E05 | Straight Deck w/8' Slide In Ramps (Rough Oak Floor)
|
| D10E05 | 5' Self Clean Dove w/Slide In Ramps (Rough Oak Floor)
|
| D13E05 | 5' Self Clean Dove w/2 Flip Over Ramps (Rough Oak Floor)
|
| D14E05 | 5' Self Clean Dove w/3 Flip Over Ramps (Rough Oak Floor)
|
| D15E05 | 5' Center Pop Up w/2 Flip Over Ramps (Rough Oak Floor)
|
| Cross Members |
| I02 | 12" Cross-Members

|
| Jacks |
| J05 | Jack Spring Loaded Drop Leg 2-10K
(standard)

|

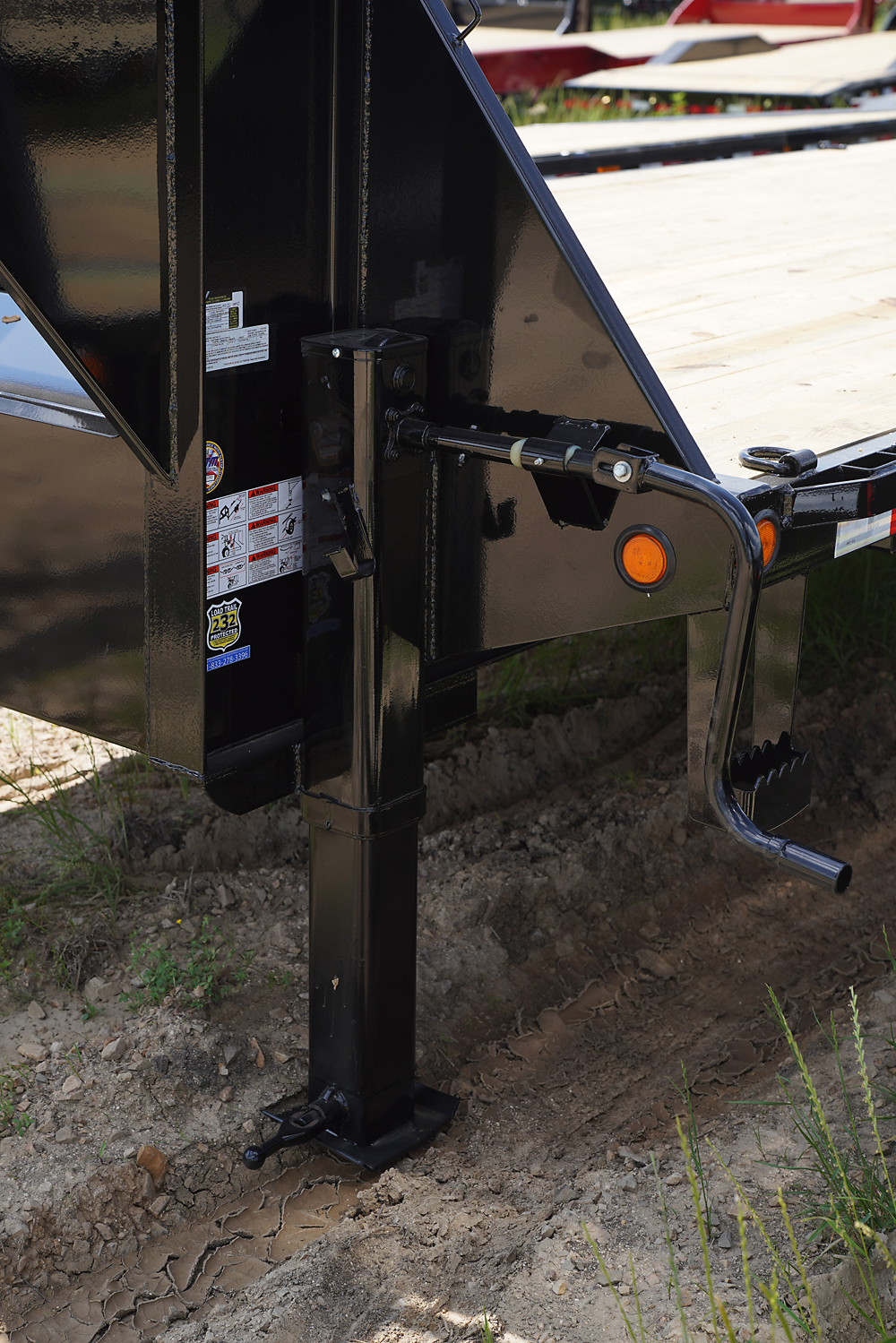

| J06 | Jack Spring Loaded Drop Leg 2-Speed 2-25K
|

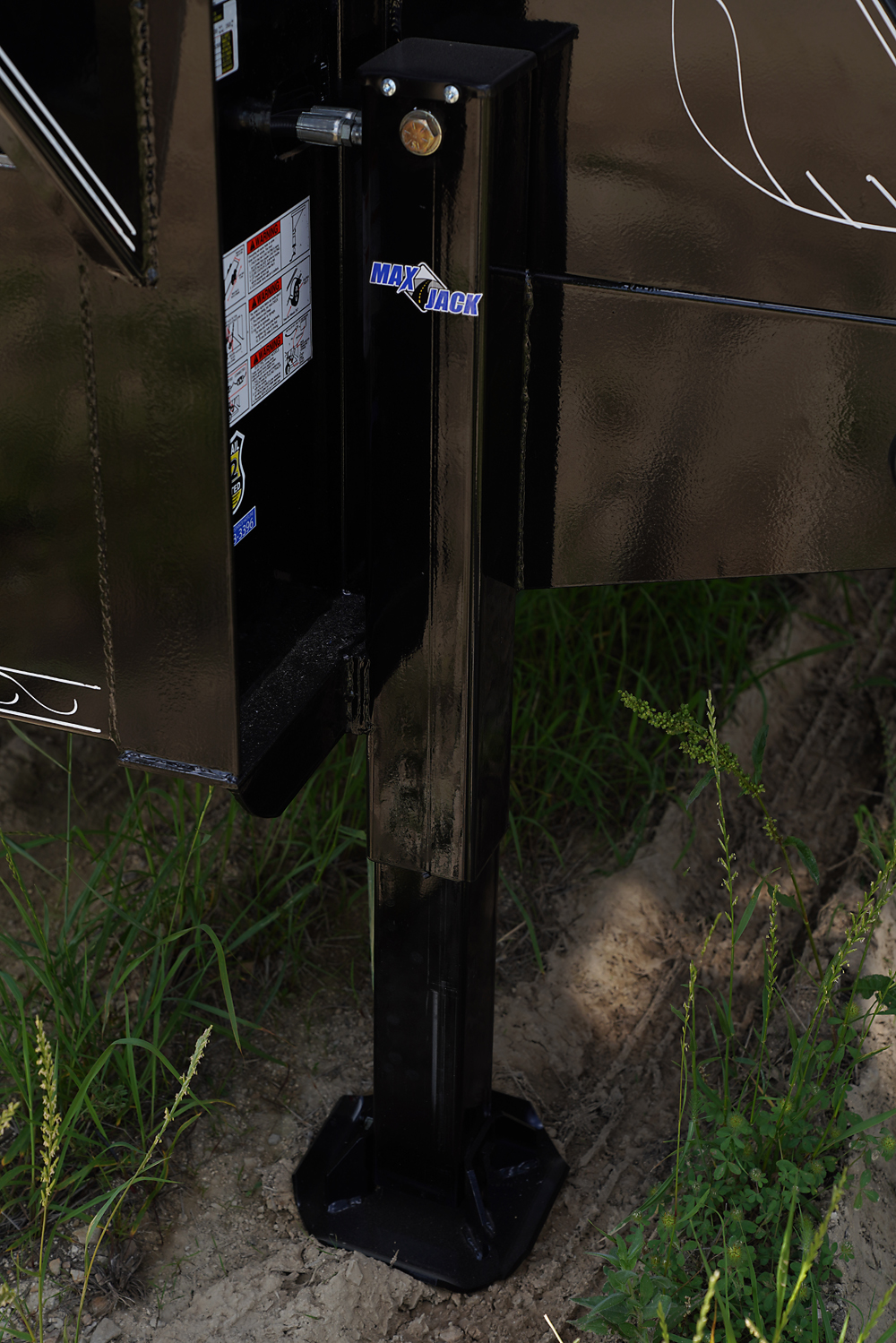

| J07 | Jack Spring Loaded Drop Leg 2-10K Hyd.
|
| J08 | Jack Spring Loaded Drop Leg 2-10K Elec.
|
| D-Rings |
| M02 | D-Rings 3" Weld On (2 additional)

|
| M03 | D-Rings 3" Weld On (4 additional)
|
| M07 | D-Rings 3" Weld On (6 additional)
|
| M04 | D-Rings 4" Recessed 360 Rotational Bolt On (4 each )
|
| M05 | D-Rings 4" Recessed 360 Rotational Bolt On (6 each )
|
| M06 | D-Rings 4" Recessed 360 Rotational Bolt On (8 each )
|
|
| Tool Box |

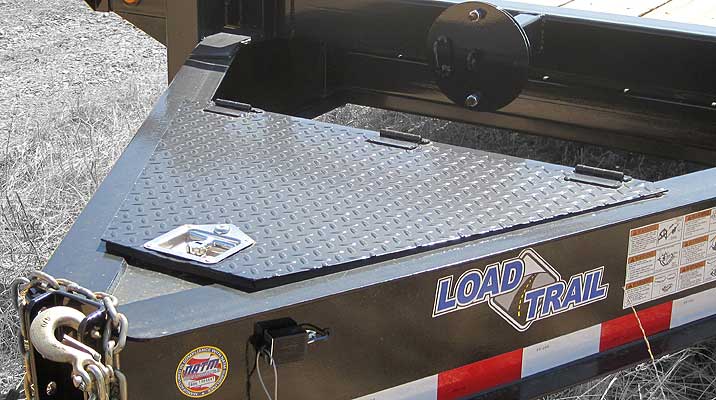

| T02 | Front Mount Tool Box

|
| T03 | Side Tool Box (LH)
|
| T04 | Side Tool Box (RH)
|
| T03T04 | Side Toolbox (Rh & Lh both sides)
|
| Frame Bridge |

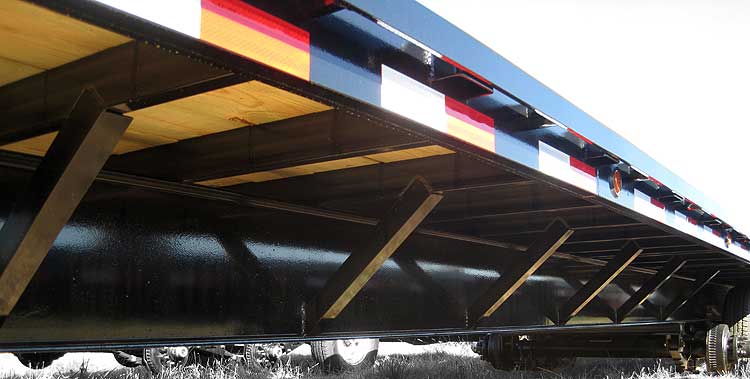

| U00 | Standard Frame w/out Bridge
(standard)

|

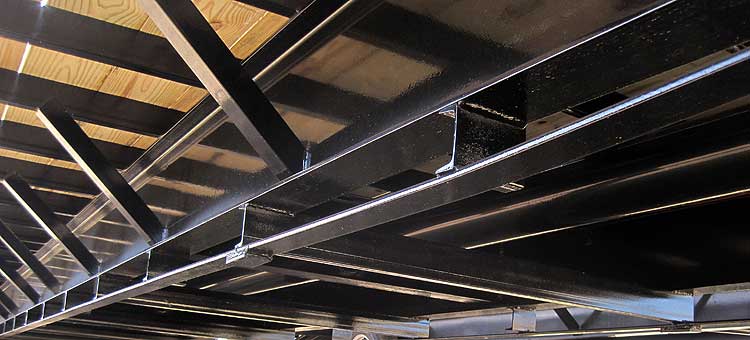

| U01 | Under Frame Bridge
|

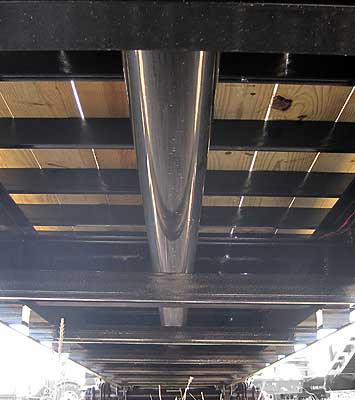

| U02 | Pipe Bridge
|
| Winch |
| W01 | Winch Plate

|
| W10 | 15000lb. Winch PKG(Std Plate,Batt, Charger,Mounting Hdw)
|
| Wheel Simulators |
| WS1 | Wheel Simulators
|
| Axle Suspensions |
| Y00 | Standard Axle Suspention
(standard)
|
| Y01 | Spread Axles 6"
|
| Y02 | Spread Axles 72"
|

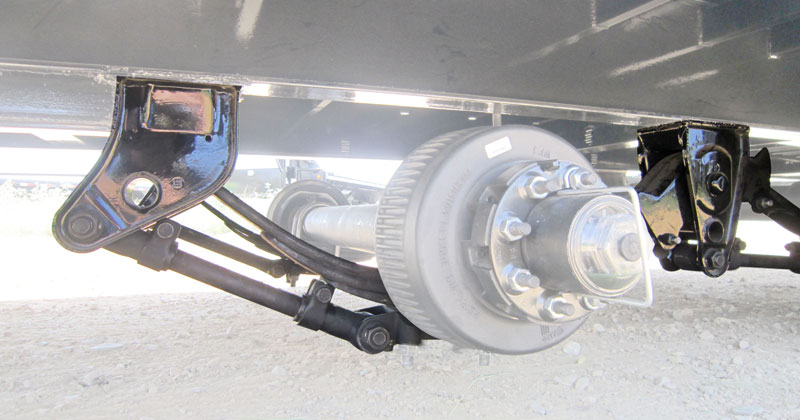

| Y10 | Hutch Suspension
|
| Y11 | Hanger Kit Tor Axle
|
| Y12 | Hanger Kit 10k 42" Dexter
|
| Y13 | Hanger Kit 10k 48-1/4" Dexter
|
| Ratchets & Track |
| Z01 | Ratchets Weld-On
|
| Z02 | Ratchets Adjustable
|
| Z03 | Ratchet Track Weld-On
|
| Receiver Hitch |
| RH1 | Bumper Attached Receiver Hitch

|
| Rear Support Jacks |

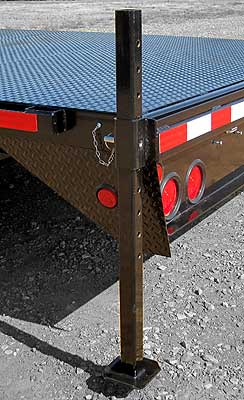

| RS2 | Rear Support Stands (Tube)

|
| Side Steps |
| SS1 | Second Side Step

|
| Spare Tire Mount (universal) |
| TM1 | Spare Tire Mount

|
| Stand Up Ramps |

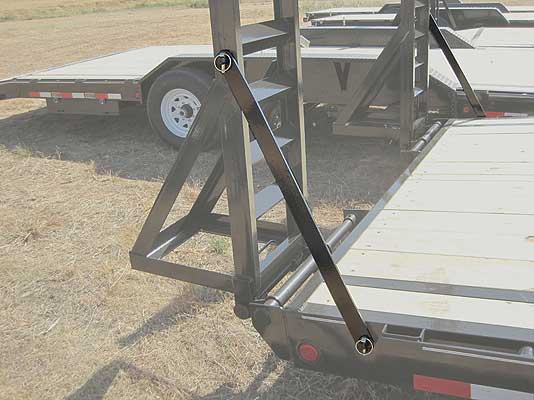

| SR1 | Ramp Support Arms

|
| Road Service Program |
| RSP | Road Service Program 903-783-3933 for Info. (standard)
|
|

|
 |
