Load Trail User Reviews
See what others are saying about Load Trail Tilt Decks: (or write a review today)
"I have owned the trailer 2 weeks. It has met my expectations. I chose Load Trail for the quality. I would suggest this brand to a friend knowing that they are well made and can be spec'd out with options needed and with A+ again because they are a dealer who know the right options for its use."
--ROBERT R. of WI
Owner Since: 04032013 |
"Just got it today. The people at load trail have been super helpful and working through a small problem. Thanks
I liked the GT-14 tilt trailer. It was a fit for my needs. Have already showed the trailer to my nephew. He his in the lawn care business and will be go to car shows with my vette and the trailer is how the vette gets to the show!
A special thanks to Michael Nesbit!
The experience begins."
--John M. of TENN.
Owner Since: 3/9/2013 |
"My trailer is awesome. I purchased with the intention of hauling my Kubota tractor on a solid trailer with a low center of gravity. Even with my tractor loaded, I still have room for an additional implement. I wouldn't trade my trailer for any other style. It pulls well, tracks well and has been problem free. I would absolutely recommend Load Trail to my friends and family. It's a great trailer at a fair price."
--Nate P. of OR
Owner Since: 2004 |
...read all reviews on Load Trail Tilt Decks
| Standard Features |
|
| GVWR: | 9,990 lb |
Product Series: | TD10 |
| Couplers: | 2-5/16" Adjustable |
GAWR: | 5,200 Lb (ea axle) |
| Axles: | 2-5,200 Lb Cambered Dexter Torsion UP 2 Elec Brake |
Jack: | 1-10K Drop Leg Spring Return |
| Safety Chains: | 12,600 Lb 1/4 x 28 G#70 |
Tires: | 225/75 D15 LRD |
| Wheels: | 15" 6-Hole White Spoke |
Flooring: | Treated Wood |
| Tongue & Neck: | 6" Channel (8.2 lbs/ft) |
Up Rights: | 2" x 2" x 3/16" Angle Iron |
| Suspension: | Multi-Leaf Spring |
Fenders: | Weld On Diamond Plate |
| Crossmembers | 3" Channel (3.5 lbs/ft) |
Frame: | 6" Channel (8.2 lbs/ft) |
| Top Rail: | 2" x 2" x 1/8" Tubing |
Lights: | D.O.T. Stop, Tail, Turn and Clearance |
| Product Line | Tilt Decks |
Wire Harness: | 16 Ga. 5-Way Double Insulated Harness w/7-way plug |
| Finishing Coat: | DTM Polyurethane Coating System |
Finish (prep): | Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion |
| D-Rings: | 3" Standard D-Rings |
Hydrulic Cylinder: | 3" x 10 w/1.25" Shaft |
| EWR Class | TILT DECK |
| |
| Axle Options: |
| Code |
Axle |
| ET2 |
2 - 5,200 Lb Dexter Torsion Axles (UP)(2 Elec Brakes)
|
| HT2 |
2 - 5,200 Lb Dexter Torsion Axles (UP)(2 Hyd Brakes)
|
Click to see our Dexter Video Playlist |
| Color Options: |
| Code |
SAMPLE |
Color |
| CB2 |
 |
Black
|
| CG3 |
 |
Grey
|
| CW4 |
 |
White
|
| CR5 |
 |
Red
|
| CB6 |
 |
Blue
|
| CG7 |
 |
Green
|
| CY8 |
 |
Yellow
|
| CO9 |
 |
Orange |
|
| Additional Options: |
| Tire Upgrades |
| A04 | ST225/75 R15 LRD 8 Ply.
(standard)
|
| A05 | ST235/80 R16 LRE 10 Ply.
|
| A03 | ST225/75 D15 LRD 8 Ply.
|
| Couplers |
| C07 | Coupler 2-5/16" Adjustable 6 Hole
(standard)
|

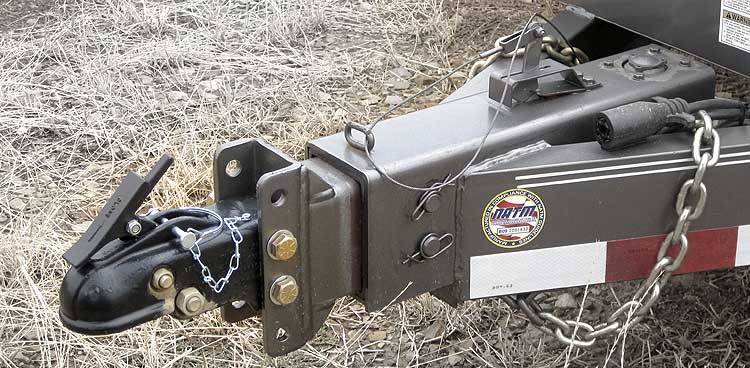

| C08 | Coupler 2-5/16" Adjustable Hyd.
|
| C11 | Pintle Ring 3" Adjustable 6 Hole
|
| Floors |
| E02 | Treated Wood Floor
(standard)
|
| E03 | Steel Floor DP
|
| E05 | Rough Oak Floor
|
| E06 | No Floor On Deck
|
| Fenders |
| F05 | Diamond Plate Fenders (weld-on)
(standard)
|
| F09 | Drive-Over Fenders 10" (weld-on)
|
| F06 | Diamond Plate Fenders (removable)
|
| Cross Members |
| I02 | 12" Cross-Members
|
| Jacks |
| J04 | Jack Spring Loaded Drop Leg 1-10K
(standard)
|
| J05 | Jack Spring Loaded Drop Leg 2-10K
|
| Lights |
| L01 | Lighting Regular
(standard)
|
| L03 | Lighting LED (optional)
|
|
| D-Rings |
| M02 | D-Rings 3" Weld On (2 additional)
|
| M03 | D-Rings 3" Weld On (4 additional)
|
| M07 | D-Rings 3" Weld On (6 additional)
|
| M04 | M04 - D-Rings 4" Recessed 360 Rotational Bolt On (4 each )
|
| M05 | M05 - D-Rings 4" Recessed 360 Rotational Bolt On (6 each )
|
| M06 | M06 - D-Rings 4" Recessed 360 Rotational Bolt On (8 each )
|
| Winch |
| W01 | Winch Plate
|
| W10 | 15000lb. Winch PKG(Std Plate,Batt, Charger,Mounting Hdw)
|
| Rub Rails |
| RR1 | Rub Rail
|
| Tool Box |
| T01 | Front Tongue Mount Tool Box
|
| Spare Tires |
| STG | Spare Tire ST225/75 R15 LRD 8 Ply. 6-Hole White Spoke
|
| STH | Spare Tire ST235/80 R16 LRE 10 Ply. 6 Hole White Spoke
|

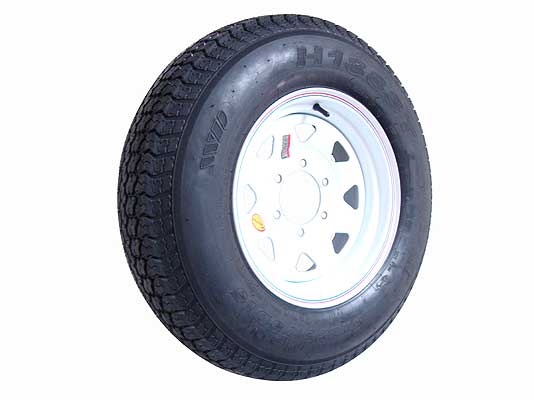

| STF | Spare Tire ST225/75 D15 LRD 8 Ply. 6-Hole White Spoke
|
| Stake Pockets |
| SP1 | 4 - Additional Stake Pockets
|
| Spare Tire Mount (universal) |
| TM1 | Spare Tire Mount
|
| Zinc Primer |
| ZP1
| Zinc Primer
|
| Road Service Program |
| RSP | Road Service Program 903-783-3933 for Info. (standard)
|
|
|
 |
Includes industry best warranty and (free) roadside assistance program. Read more...
