UT07 - Tandem Axle Utility 7,000 Lb w/4" Channel Frame

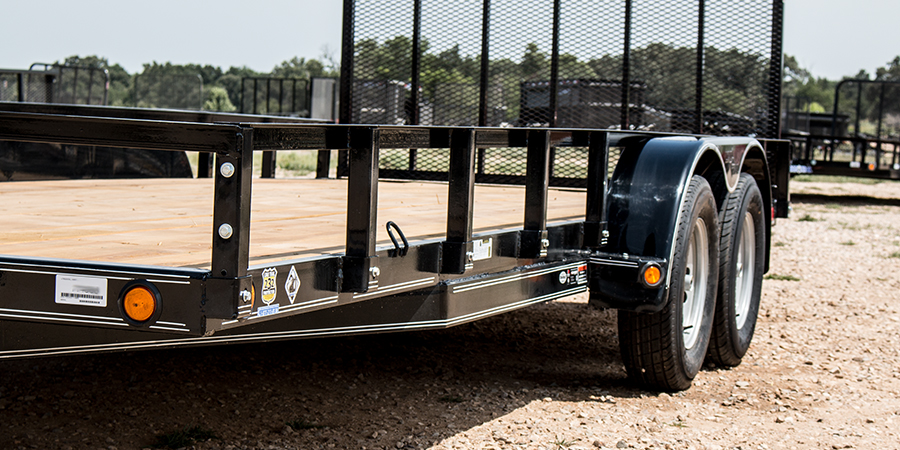

**UT07 stock photo. May be shown with optional equipment.
Click trailer image for a larger view.








Part Description Weight
UT0216032   102" X 16' Tandem Axle Utility   2092
UT0220032   102" X 20' Tandem Axle Utility   2380
UT0222032   102" X 22' Tandem Axle Utility   2496
UT6010032   60" X 10' Tandem Axle Utility   1227
UT6012032   60" X 12' Tandem Axle Utility   1339
UT6014032   60" X 14' Tandem Axle Utility   1446
UT6016032   60" X 16' Tandem Axle Utility   1555
UT6018032   60" X 18' Tandem Axle Utility
UT6020032   60" X 20' Tandem Axle Utility
UT7710032   77" X 10' Tandem Axle Utility   1355
UT7712032   77" X 12' Tandem Axle Utility   1486
UT7714032   77" X 14' Tandem Axle Utility   1608
UT7716032   77" X 16' Tandem Axle Utility   1748
UT7718032   77" X 18' Tandem Axle Utility   1882
UT7720032   77" X 20' Tandem Axle Utility   2017
UT7722032   77" X 22' Tandem Axle Utility
UT8310032   83" X 10' Tandem Axle Utility   1408
UT8312032   83" X 12' Tandem Axle Utility   1547
UT8314032   83" X 14' Tandem Axle Utility   1679
UT8316032   83" X 16' Tandem Axle Utility   1825
UT8318032   83" X 18' Tandem Axle Utility   1968
UT8320032   83" X 20' Tandem Axle Utility   2113
UT8322032   83" X 22' Tandem Axle Utility   2229
Includes industry best warranty and (free) roadside assistance program. Read more...
Download Trailer Brochure
Online Trailer Quote
Trailer Finance Options

Load Trail User Reviews

See what others are saying about Load Trail Tandem Axle Utility and Tandem Axle Landscape: (or write a review today)

"I am a very discriminating consumer and deligently inspected and shopped all trailer brands in Central New Mexico. To my surprise I found a small trailer dealer in Bosque Farms that sold a brand that was unfamiliar to me. After a detailed inspection of the 83" x 14' tandem axle utility trailer I bought it on the spot. It was the highest quality and best designed trailer in my area. I liked the heavy duty C-channel construction, steel fenders, Dexter axles, swivel jack, smart wiring, cast iron hitch, and good paint job. As a bonus my dealer, ABC Trailer, was wonderful. He was knowledgable, freindly, and didn't try to push the sale. As I was writing the the check for the trailer I got a few more nice surprises; the 2-3-2 warranty, a hat (okay a hat is not that big of a deal, but I always wear a ball cap and was in need of a new cap), and manuals! I have owned two horse trailers, two boat trailers, and three utility trailers and never received any manuals. This trailer came with two manuals, one for the trailer and another one for the axles! I've only owned the trailer for a few weeks and have hauled hay, horse panels, and my tractor. I am very happy with my purchase, the dealer, and Load Trail."
--Michael S. of NM
Owner Since: 6/8/13

"I have had my own construction and cabinet making business for the past 10 years and never owned my own trailer. I always had to make arrangements with a friend to borrow their trailer and the worker that went with it when I required a trailer. This was becoming quite costing and also very inefficient when doing business. I finally convinced my wife that the business would run more efficiently if I just had my own trailer. I purchased my trailer last month and I tell you it has proved its worth in gold!!!! I love my trailer and really wished I had purchased it 10 years ago!! I am constantly using the trailer and not having to use the back of my pick up, crawling in and out anymore. Awesome trailer....."
--PETER G. of NOVA SCOTIA
Owner Since: APRIL 26 2013

"Purchased the used 17' tandem axle utility trailer this past weekend and have used it already several times in only a few days of ownership. The trailer has lived up to my expectations and beyond. I have used it to transport a friends GTO to his new residence. I have loaded my and the kids Quads with no problem.The handling of the trailer on the road loaded or empty is exceptional. Very satisfied with my purchase of The Load Trail trailer and highly recommend it to anyone in search of a dependable trailer. Definitely high quality construction."
--Mike C. of NY
Owner Since: 08/30/2014

...read all reviews on Load Trail Tandem Axle Utility and Tandem Axle Landscape

Standard Features
GVWR:7,000 lb Side Rails:Weld-On
Product Series:UT07 Couplers:2" A-Frame 7,000 Lb
GAWR:3,500 Lb (ea axle) Axles:2-3,500 Lb Cambered Dexter Spring 1 Elec. Brake
Jack:5,000 Lb Top Wind Swivel Jack Safety Chains:7,600 Lb 5/16 x 29 G#30
Tires:205/75 D15 LRC Wheels:15" 5-Hole White Spoke
Flooring:Treated Wood Tongue & Neck:4" Channel (4.5 lbs/ft)
Up Rights:2" x 2" x 1/8" Angle Iron Suspension:Multi-Leaf Spring
Fenders:Removable Smooth Plate Crossmembers2" x 2" x 3/16 Angle Iron (2.44 lbs/ft)
Frame:4" Channel (4.5 lbs/ft) Top Rail:2" x 2" x 1/8" Angle Iron
Lights:D.O.T. Approved Stop, Tail, Turn and Clearance LED Product LineTandem Axle Utility & Tandem Axle Landscape
Wire Harness:16 Ga. 5-Way Double Insulated Harness w/7-way plug Finishing Coat:DTM Polyurethane Coating System
Finish (prep):Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion EWR ClassTANDEM AXLE UTILITY

Axle Options:
Code Axle
ES1  2 - 3,500 Lb Dexter Spring Axles (1 Elec Brake)
ES2  2 - 3,500 Lb Dexter Spring Axles (2 Elec Brakes)
HS1  2 - 3,500 Lb Dexter Spring Axles (1 Hyd Drum Brake)
HS2  2 - 3,500 Lb Dexter Spring Axles (2 Hyd Drum Brakes)
ESA  2 - 3,500 Lb Dexter Axles (1 Elec Brake)Forward Adjusting
ESB  2 - 3,500 Lb Dexter Axles (2 Elec Brakes)Forward Adjusting


Click to see our Dexter Video Playlist
Color Options:
Code SAMPLE Color
CB2 Black
CG3 Grey
CW4 White
CR5 Red
CB6 Blue
CG7 Green
CY8 Yellow
CO9 Orange

Additional Options:
Tire Upgrades
A02ST205/75 R15 LRD 8 Ply. (standard)
A04 ST225/75 R15 LRD 8 Ply.
A01 ST205/75 D15 LRC 6 Ply.
A03 ST225/75 D15 LRD 8 Ply.
Couplers
C01Coupler 2" A-Frame Cast (standard)
C02 Coupler 2" A-Frame
C03 Coupler 2" A-Frame Cast Hyd.
C04 Coupler 2" Adjustable 4 Hole
C06 Coupler 2-5/16" A-Frame Stamped
C07 Coupler 2-5/16" Adjustable 4 Hole
Dove Tail & Floors
E02Treated Wood Floor (standard)
D01 Treated Wood Floor w/2' Dove Tail
D02 Treated Wood Floor w/2' Diamond Plate On Dove Tail
E03 Steel Floor DP
D01E03 Steel Floor DP w/2' Dove Tail
E05 Rough Oak Floor
E06 No Floor On Deck
D-Rings
M02D-Rings 3" Weld On (2 additional)
M03 D-Rings 3" Weld On (4 additional)
M04 D-Rings 4" Recessed 360 Rotational Bolt On (4 each )
M05 D-Rings 4" Recessed 360 Rotational Bolt On (6 each )
M06 D-Rings 4" Recessed 360 Rotational Bolt On (8 each )
Fenders
F03Smooth Plate Tear Drop Fenders (weld-on) (standard)
F05 Diamond Plate Fenders (weld-on)
Rear Gates
G01Standard w/Rear Board Slides (included) (standard)
G09 5' HD Fold Gate Split w/Ramp & Springs
Cross Members
I0116" Cross-Members
Jacks
J01Jack Swivel 5000 lb. (standard)
J02 Jack Drop Leg 7000 lb.
Lights
L03Lighting LED (optional)
L01 Lighting Regular
Side Rail Options
P02Angle Iron Side Rails (weld on) (standard)
P03 Pipe Top Side Rails (weld on)
P04 Sq. Tube Side Rails (weld on)
Tool Box
T01Front Tongue Mount Tool Box
Winch
W01Winch Plate (8" Channel)
W10 15000lb.Winch PKG(Std 8"Channel, Batt, Charger,Mounting Hdw)
Rear Support Jacks
RS1Rear Support Stands (2 - 5,000 Lb Swivel Jacks)
Spring Assist (on gates)
SA1Spring Assist on Fold Gates
Spare Tires
STCSpare Tire ST205/75 R15 LRD 8 Ply. 5-Hole White Spoke
STE Spare Tire ST225/75 R15 LRD 8 Ply. 5-Hole White Spoke
STB Spare Tire ST205/75 D15 LRC 6 Ply. 5-Hole White Spoke
STD Spare Tire ST225/75 D15 LRD 8 Ply. 5-Hole White Spoke
Stake Pockets
SP14 - Additional Stake Pockets
Spare Tire Mount (universal)
TM1Spare Tire Mount
Zinc Primer
ZP1 Zinc Primer
Road Service Program
RSPRoad Service Program 903-783-3933 for Info. (standard)



Prices, features, and specifications are subject to change without notice.
